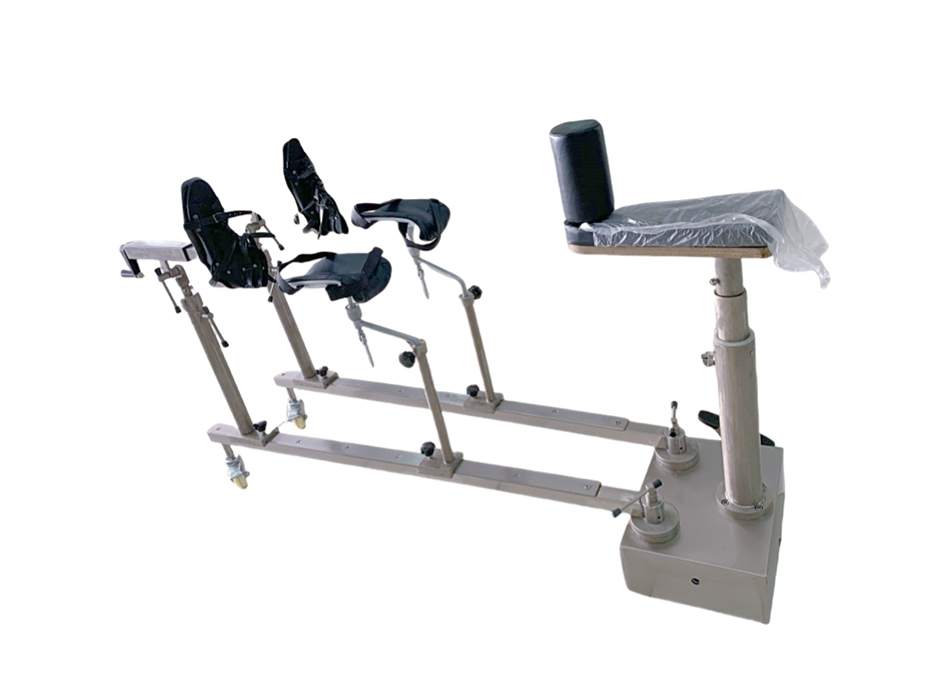

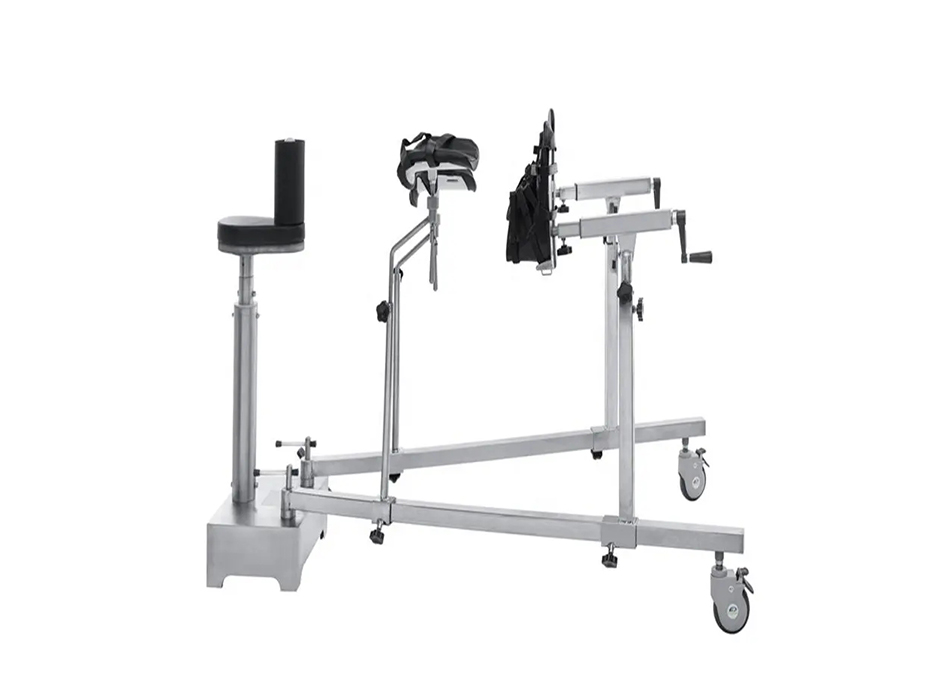

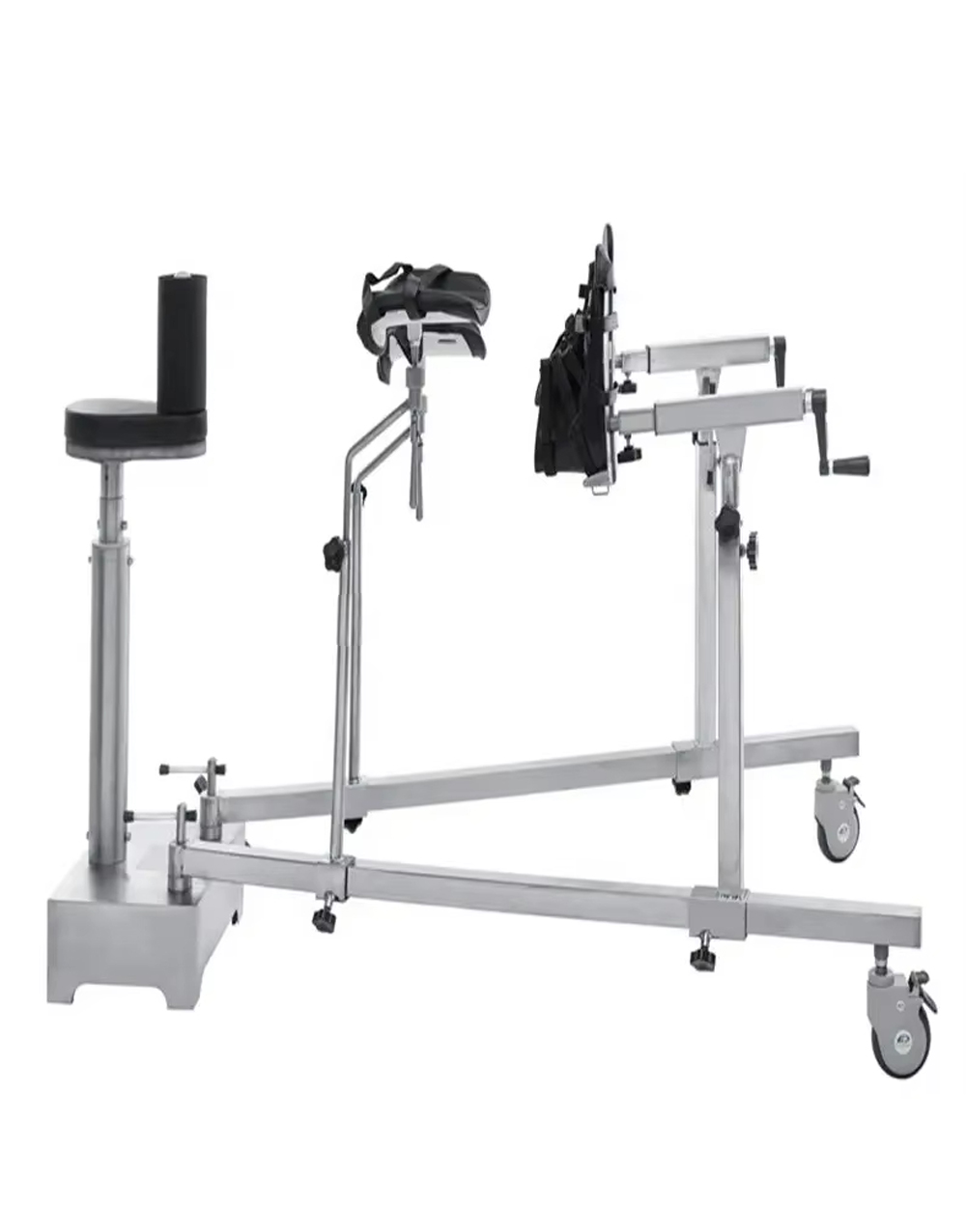

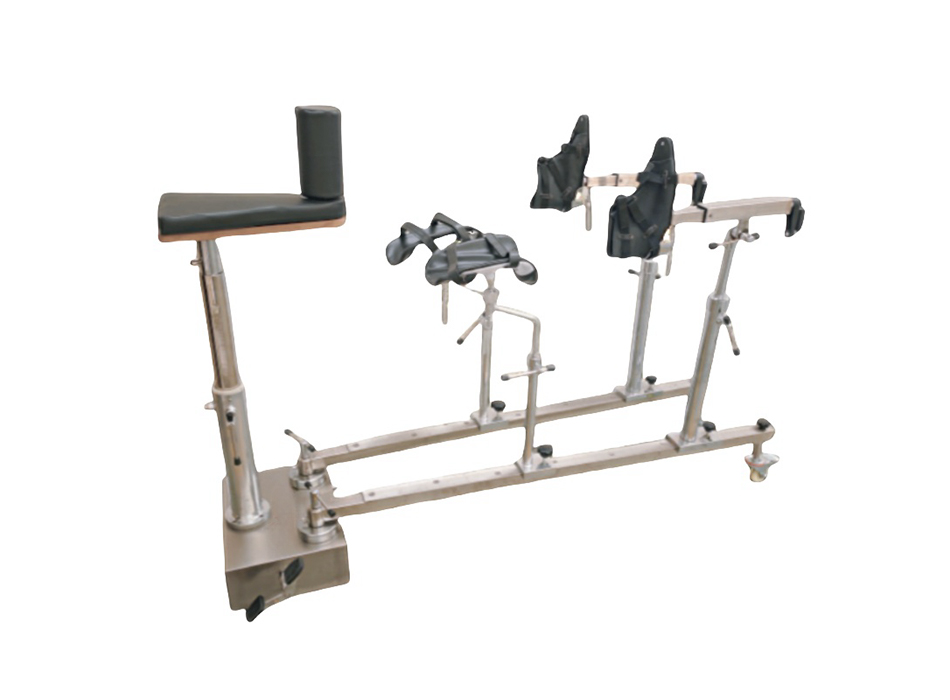

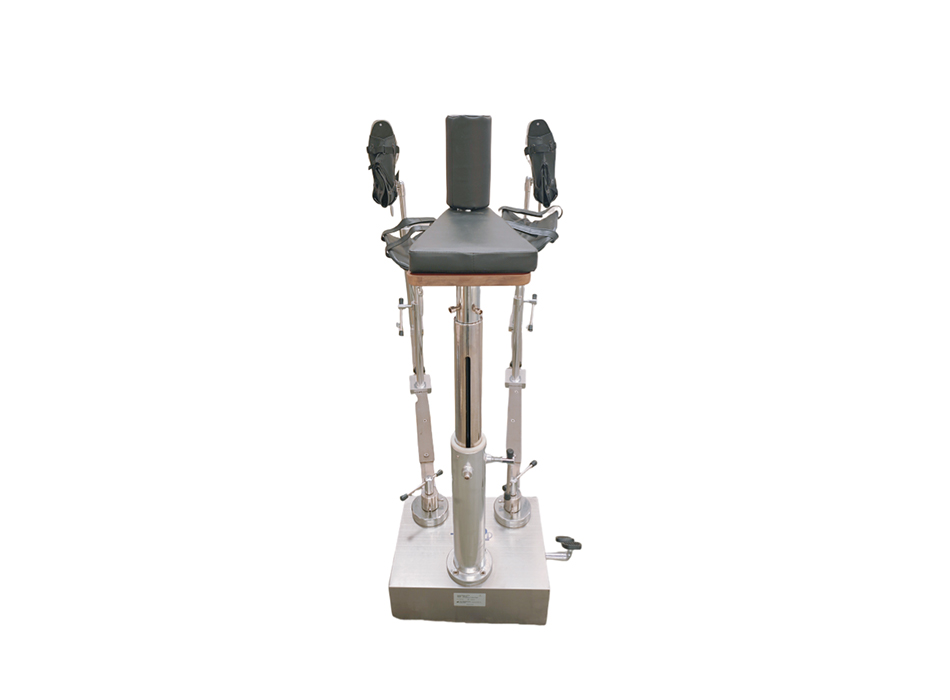

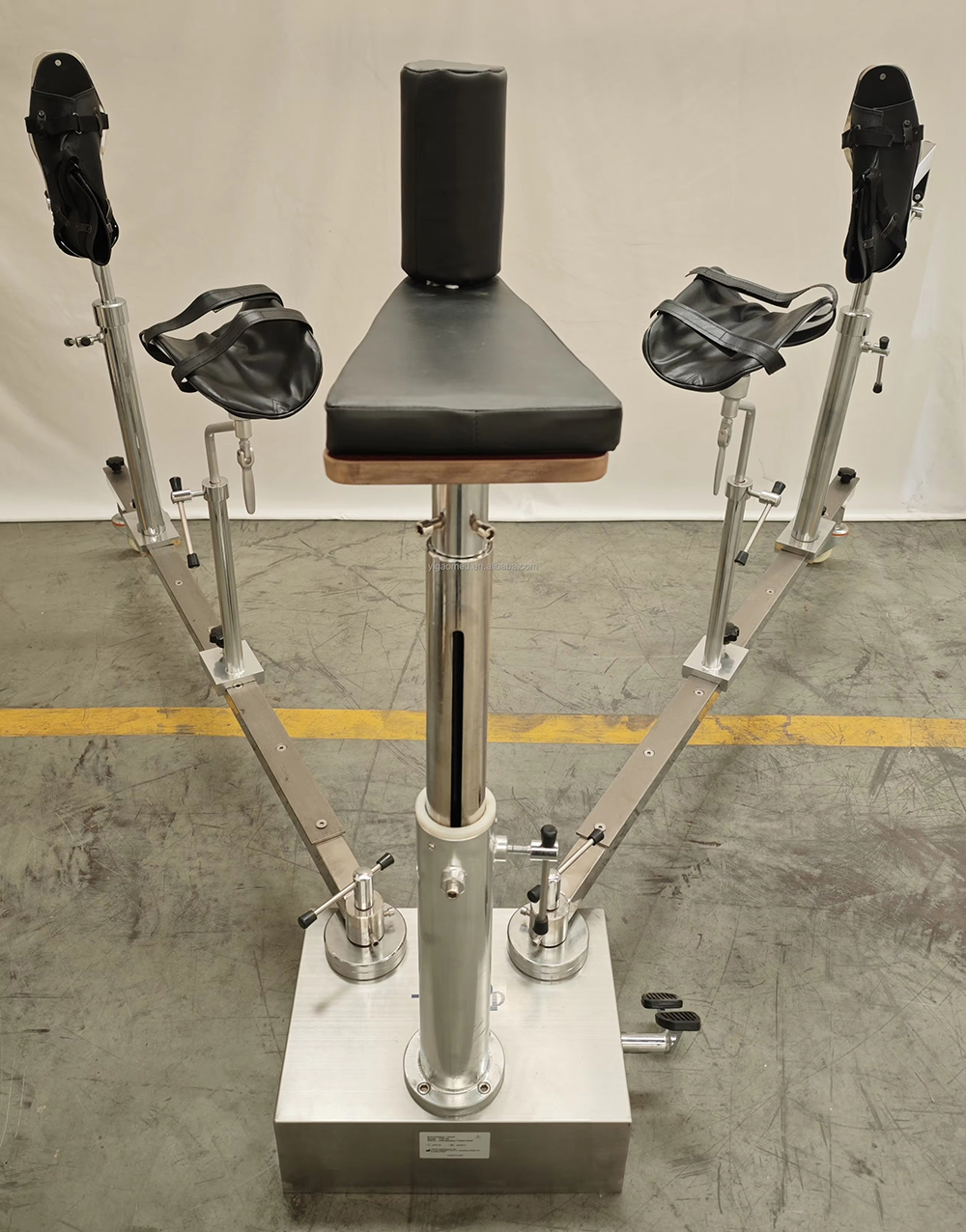

YGG01 Multifunctional orthopedic Traction Frame
1. The orthopedic traction frame can be matched with any operating tables with different manufacturers for lower limb orthopedic surgery.
2. The orthopedic operating table is composed of hipboard, column, base, and a traction bar.
3. The orthopedic operating table is made of carbon steel plating and stainless steel.
4. The hipboard lifting is controlled by gas springs.
Product Description
Traction frame

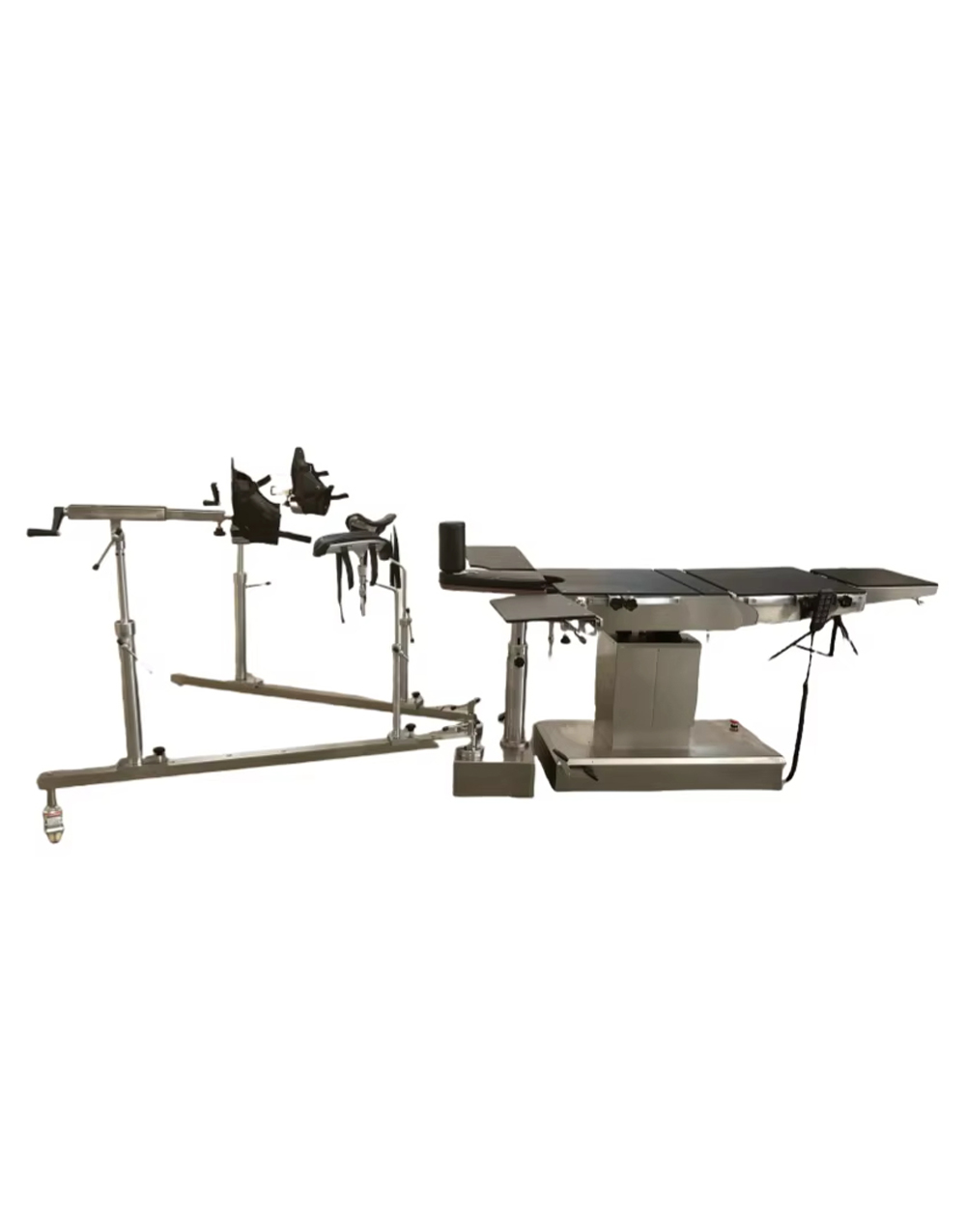

This tractor is connected to the operating table and can be used for orthopedic surgery and traction. It has the functions of elevation, extension, C-arm perspective, reasonable frame, flexible connection and easy operation.
|
Table length |
1900mm |
|
Table width |
400mm |
|
Table lifting |
750-1000mm |
|
Pedal extension distance |
≥1000mm |
|
Pedal height adjustment |
≥400mm |
|
Pedal angle range |
≥90° |
|
Pedal adjustment distance |
≥200mm |
| Item | Quantity |
| Traction frame | 1 piece |
| Pedal | 1 set |
| Leg support | 1 set |
| Hip board | 1 set |
