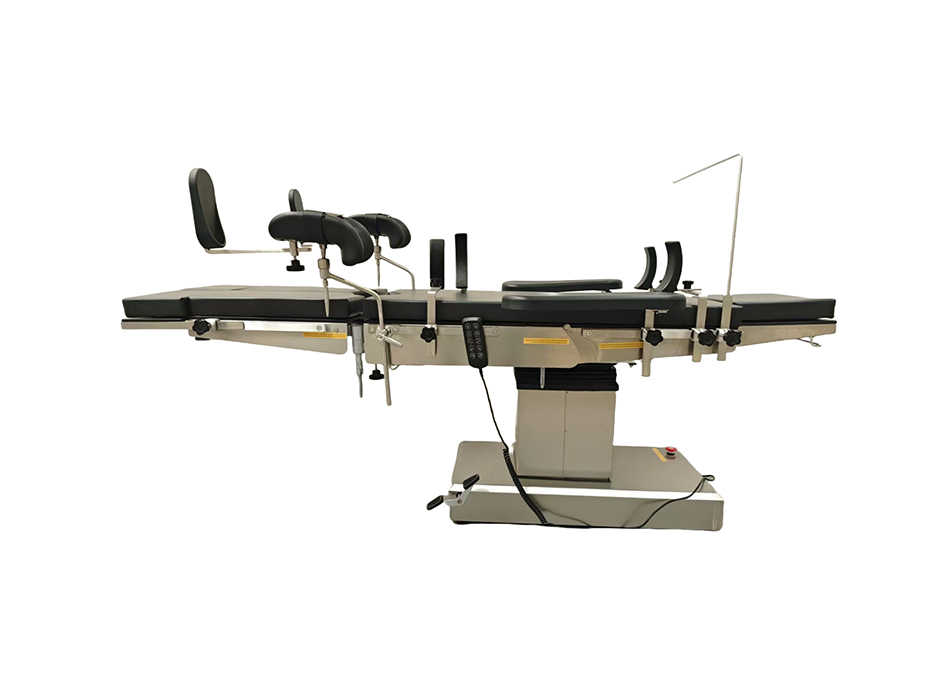

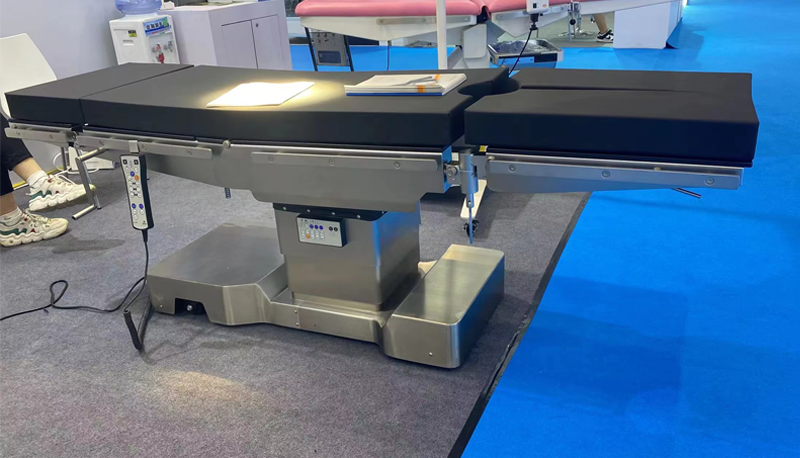

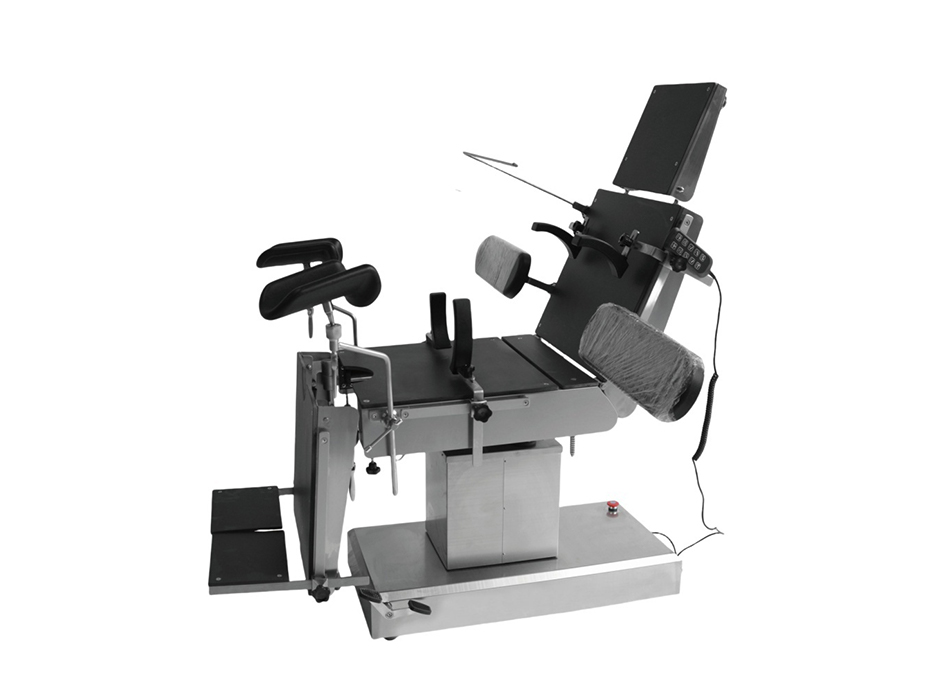

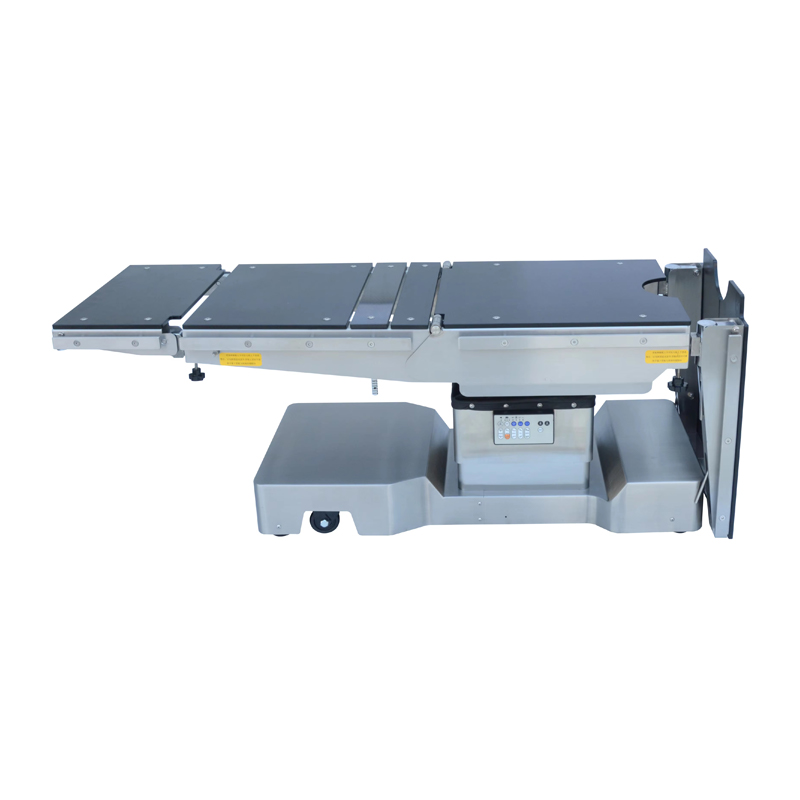

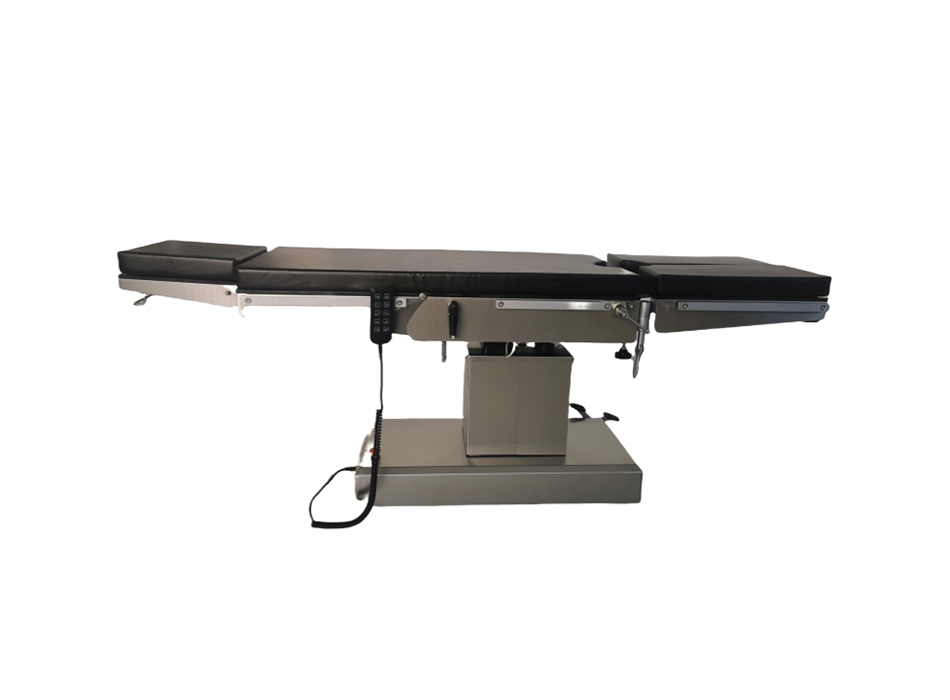

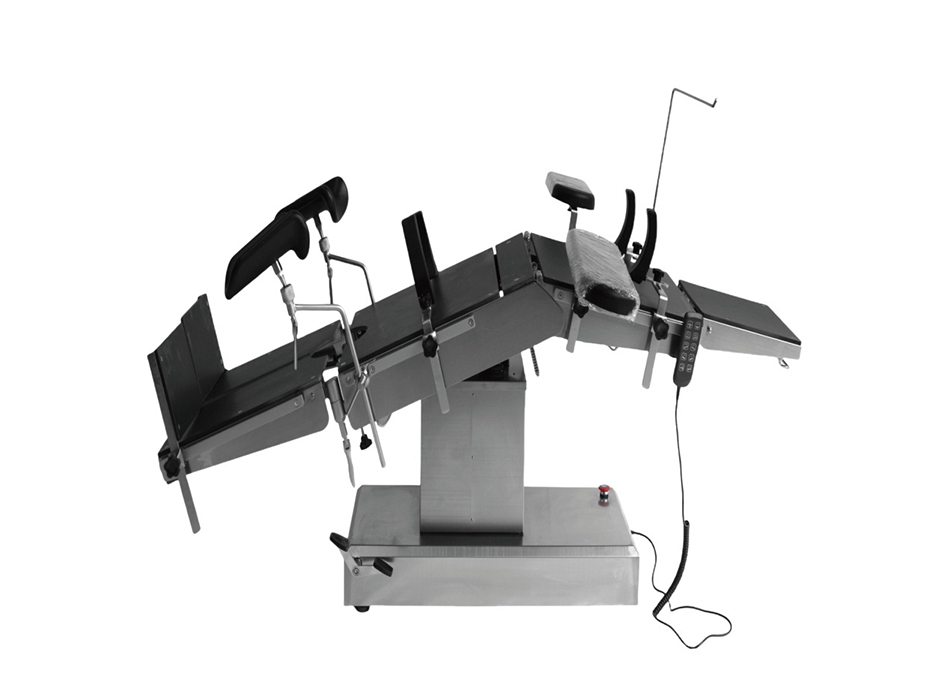

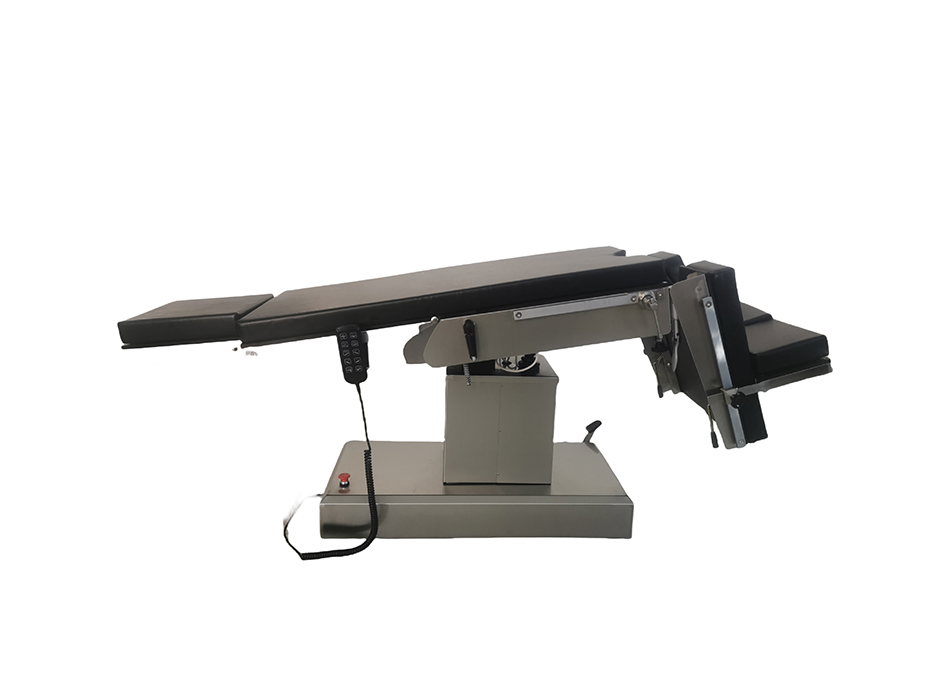

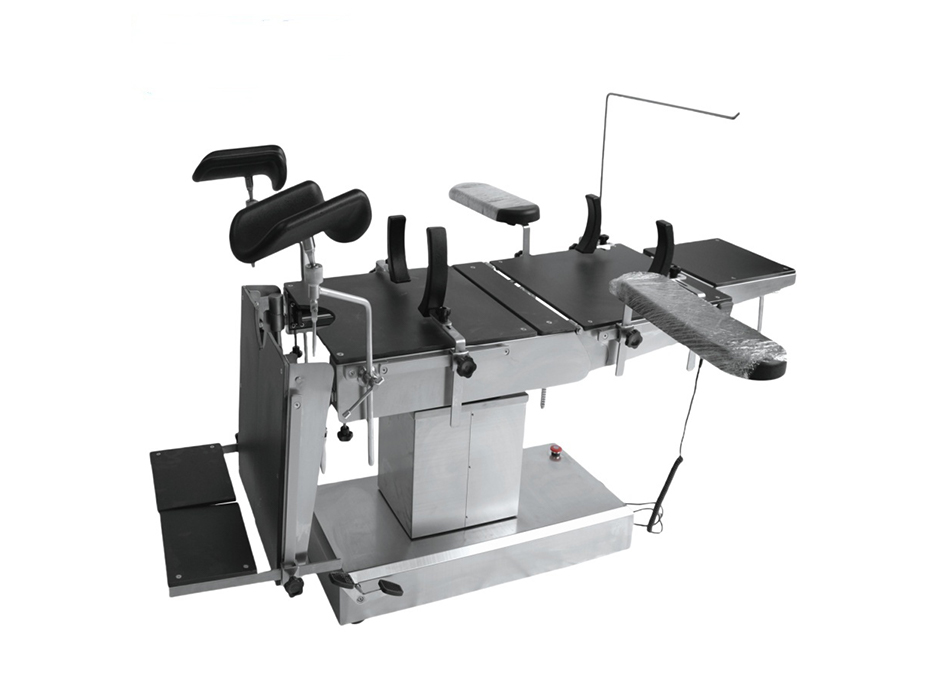

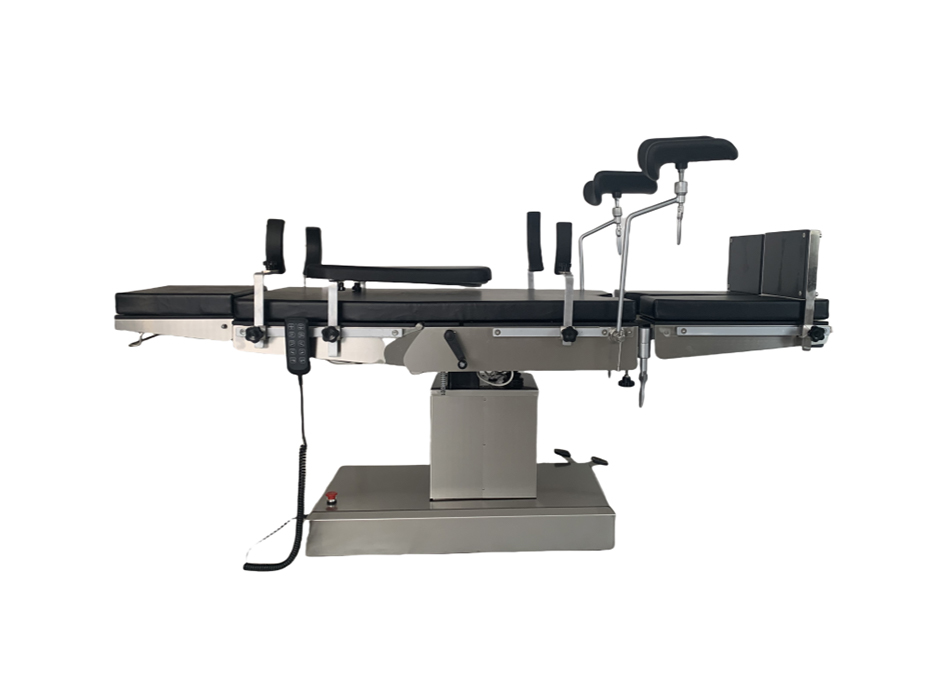

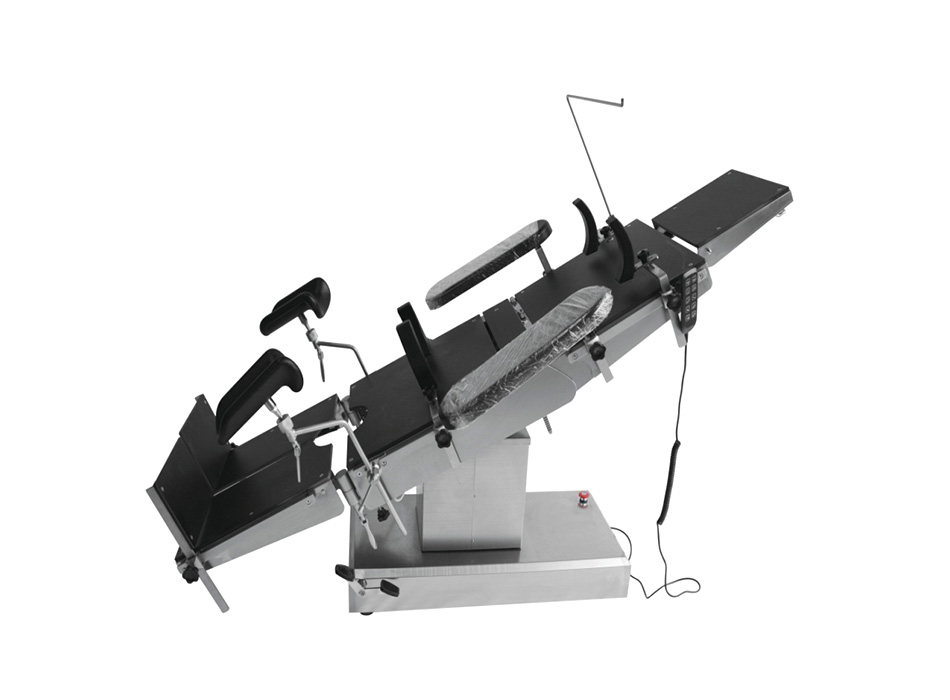

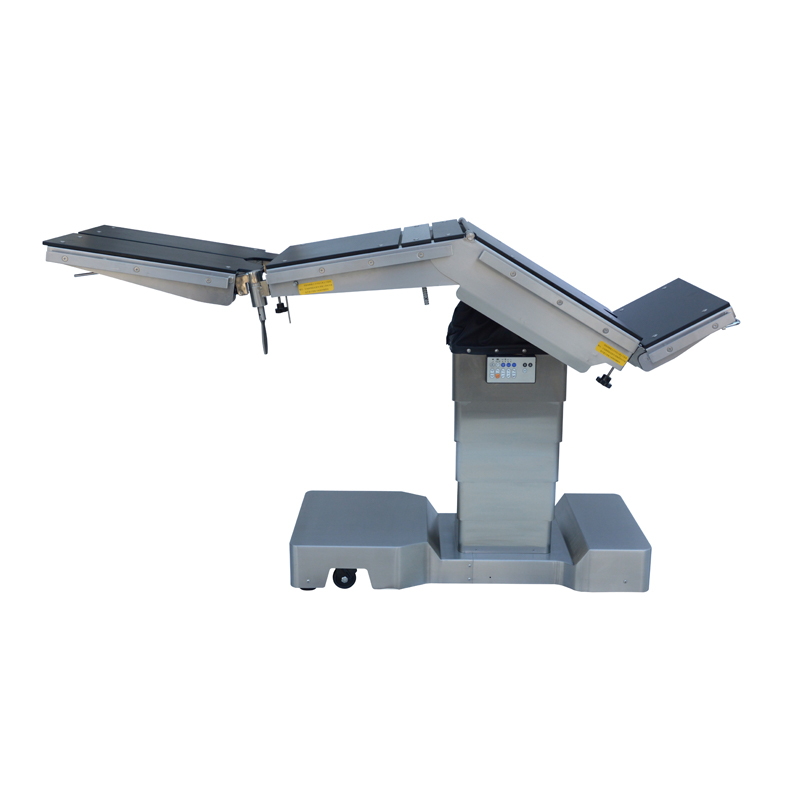

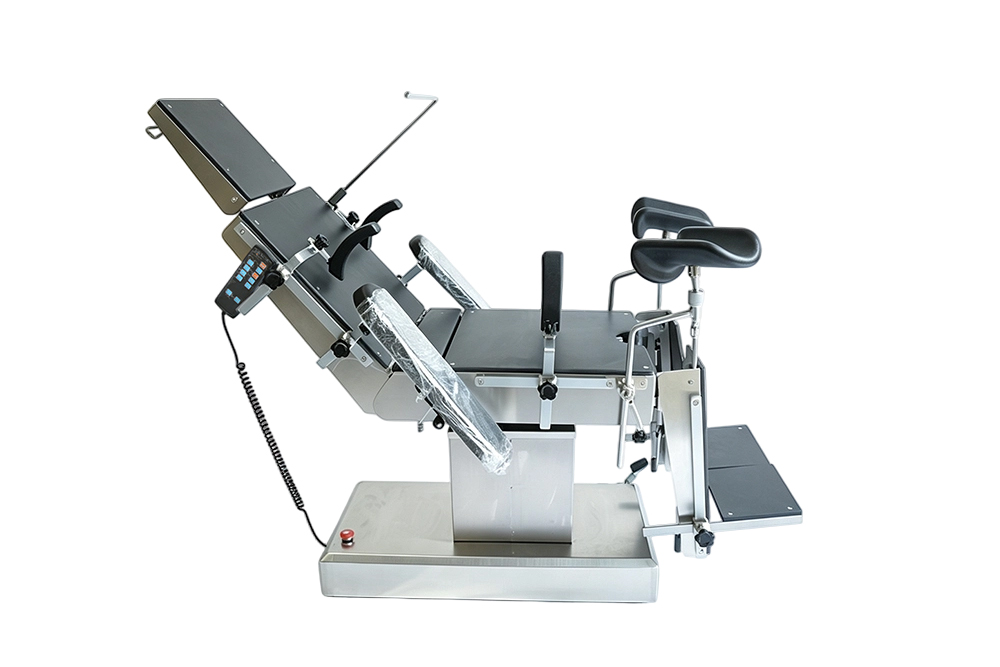

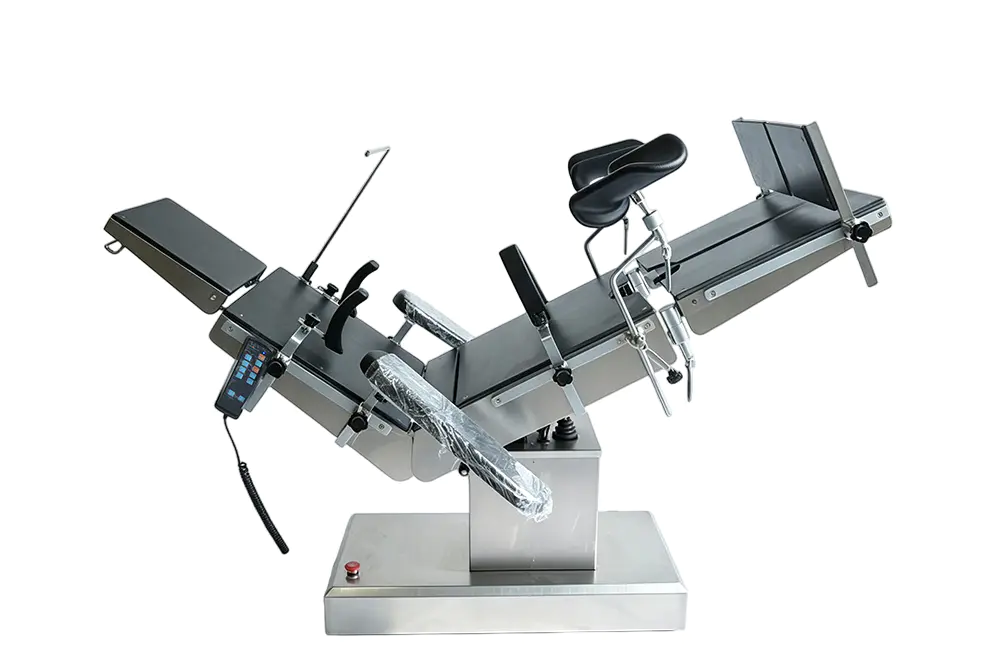

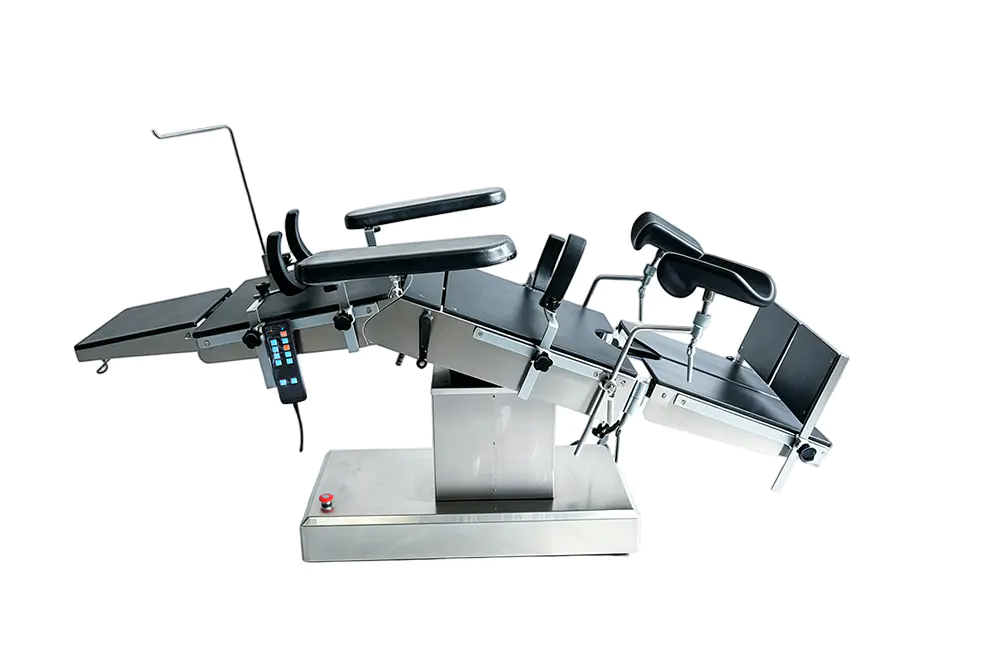

YGDH04G Electric hydraulic surgical operating table

This product is suitable for performing head, neck, chest, abdominal cavity, perineum, and limb surgeries in hospital operating rooms, as well as obstetrics and gynecology, ophthalmology, otolaryngology, orthopedics, and other surgeries. The lifting, forward and backward tilting, left and right tilting, backboard folding, and longitudinal movement of the tabletop are achieved by an electric hydraulic system, which is flexible and simple to operate. The table panel is made of high-strength synthetic board and can be used in conjunction with C-shaped arms.

Contact Us
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
  • YGDH04G Electric hydraulic surgical operating table
PREV：YGDH05 Hydraulic electric operation table
NEXT：YGDH04A -Upgraded Electric hydraulic Operation table

Product Description

Ultra-low position electric hydraulic operating table
1. The operating table is driven by a hydraulic system, with low sound and large load-bearing capacity, which can meet the different operations of various departments such as thoracic and abdominal surgery, brain surgery, gynecology, urology, otolaryngology, orthopedics, etc.
2. The table frame, side rails, bottom cover and column cover are all made of SUS304 stainless steel.
3. The desktop is divided into five parts: head, back, waist, hip and leg parts; the material of the desktop can be X-rayed.
4. It is equipped with a handheld controller and a column panel controller, which will automatically lock without operation for 30 seconds.

Double waist bridge operating table
5. It has a one-button horizontal reset function.
6. It has a one-button forward and reverse flexion/flexion function.
7. The table can be moved to the direction of the head and leg boards, and it also has an interchange function between the head and leg boards, and the perspective space reaches 1500mm, which is better matched with the C-arm camera.
8. The waist lift is manual lift.

Ultra-low running table
9. Electric hydraulic brake.
10. Multi-layer memory foam mattress effectively reduces the occurrence of bedsores, the mattress is anti-static, waterproof, anti-fouling and easy to clean.
11. Built-in battery, when the battery is fully charged, it can run continuously and uninterruptedly for no less than 80 minutes without AC power.
12. The static load of the whole machine is 450 kg.

Table length

 2050mm

Table width

 500mm

Table lifting

 750-1000mm

Headboard upwards/downwards

 ≥55°/ ≥90°

Backboard upwards/downwards

 ≥50°/ ≥30°

Leg board downwards/ outreached

 ≥ 90°

Forward tilt/ Backward tilt

 ≥20°/ ≥30°

Left and right tilt

 ≥20°

Waist bridge lifting

 ≥100mm

Maximum translation distance

 ≥300mm
Item Quantity
Anesthesia protective screen 1 piece
Shoulder support 1 set
Armrest 1 set
Body support 1 set
Leg support 1 set
Mattress 1 set
Hand held operator 1 set
