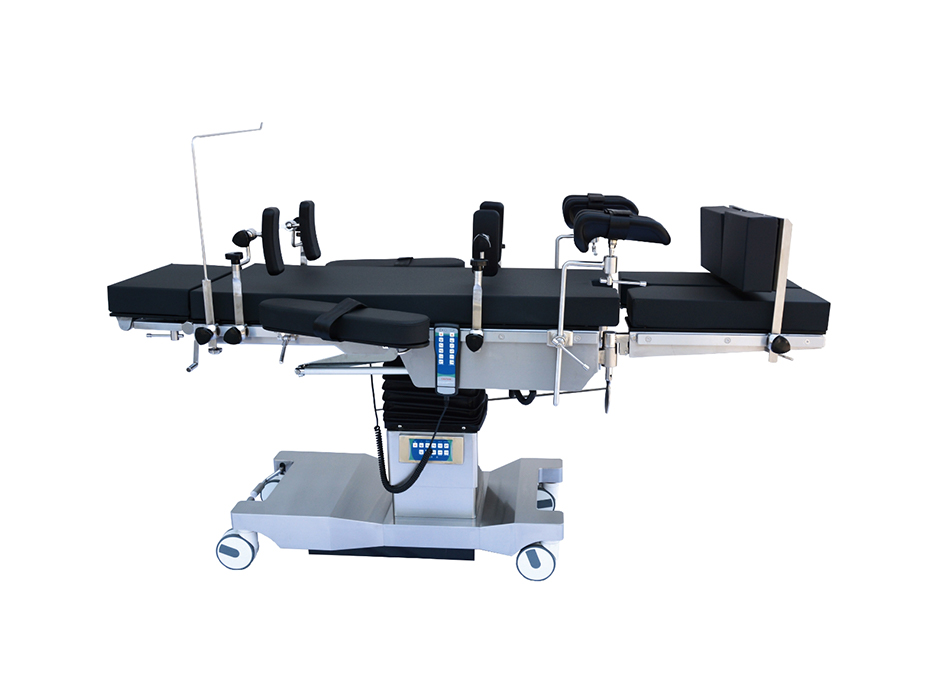

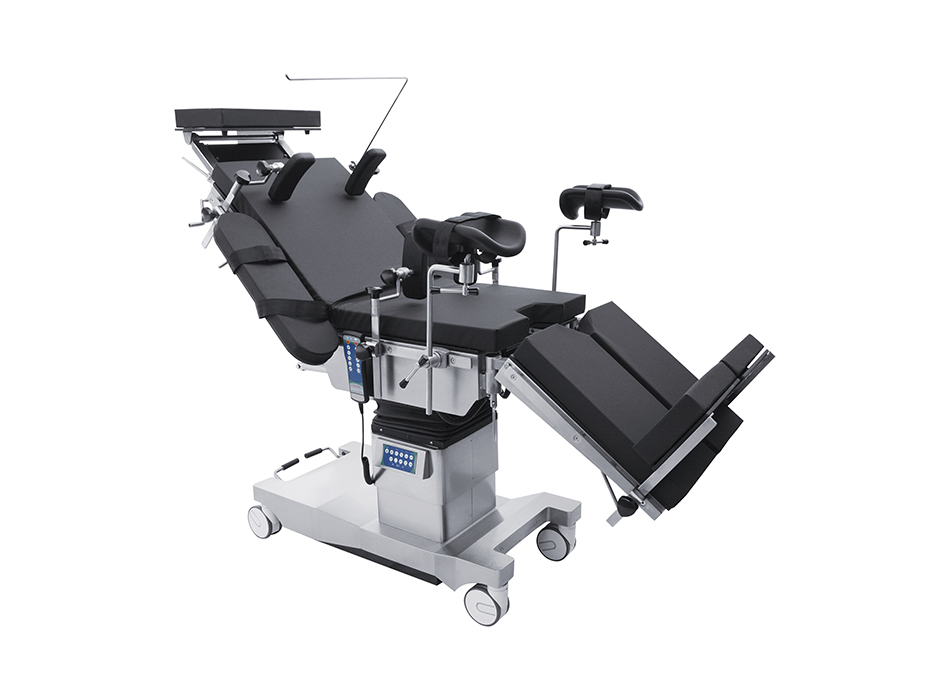

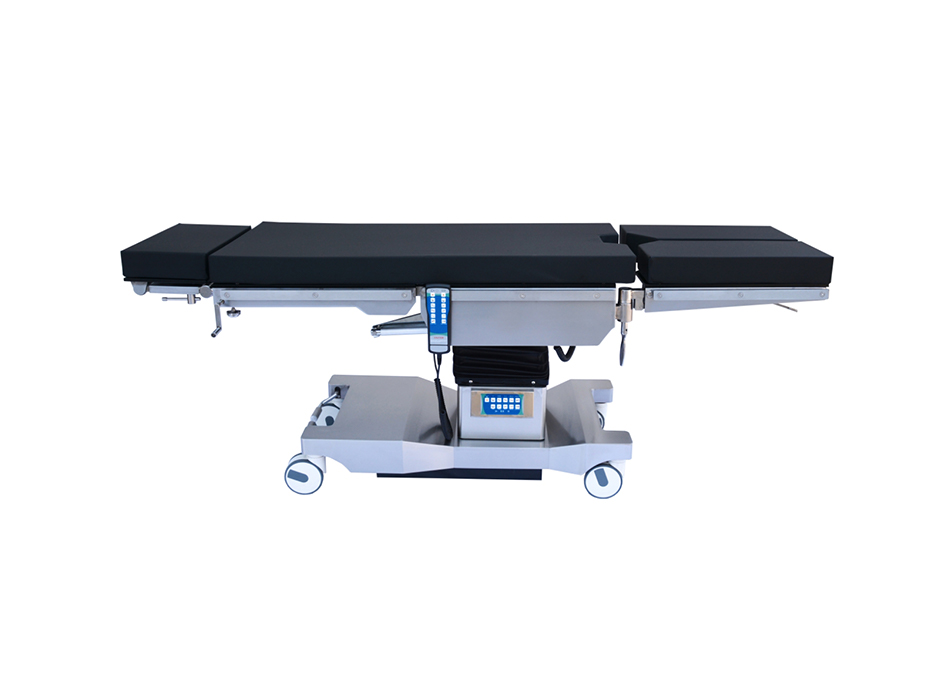

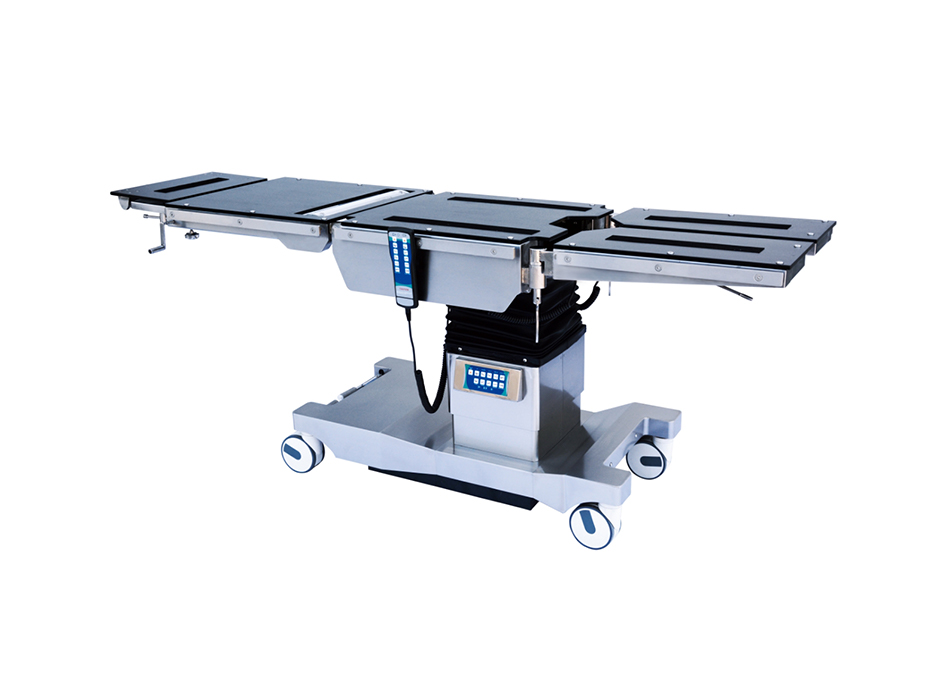

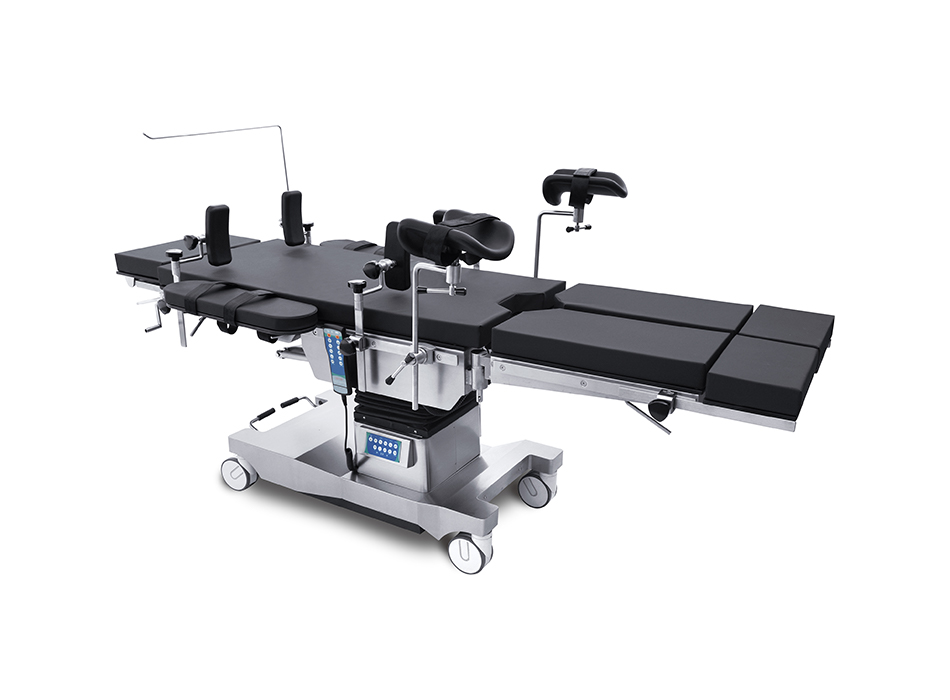

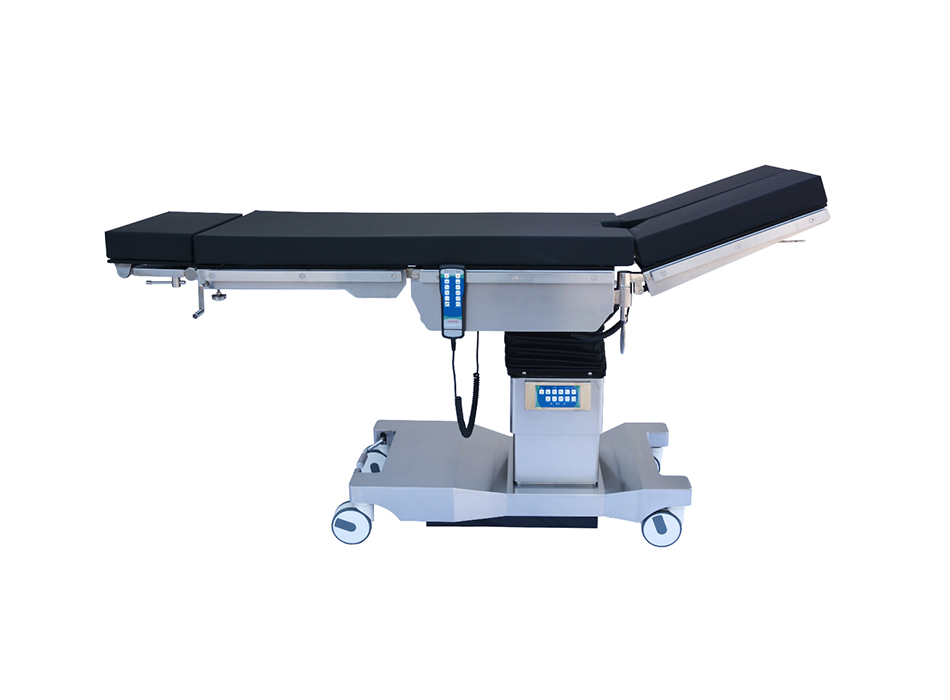

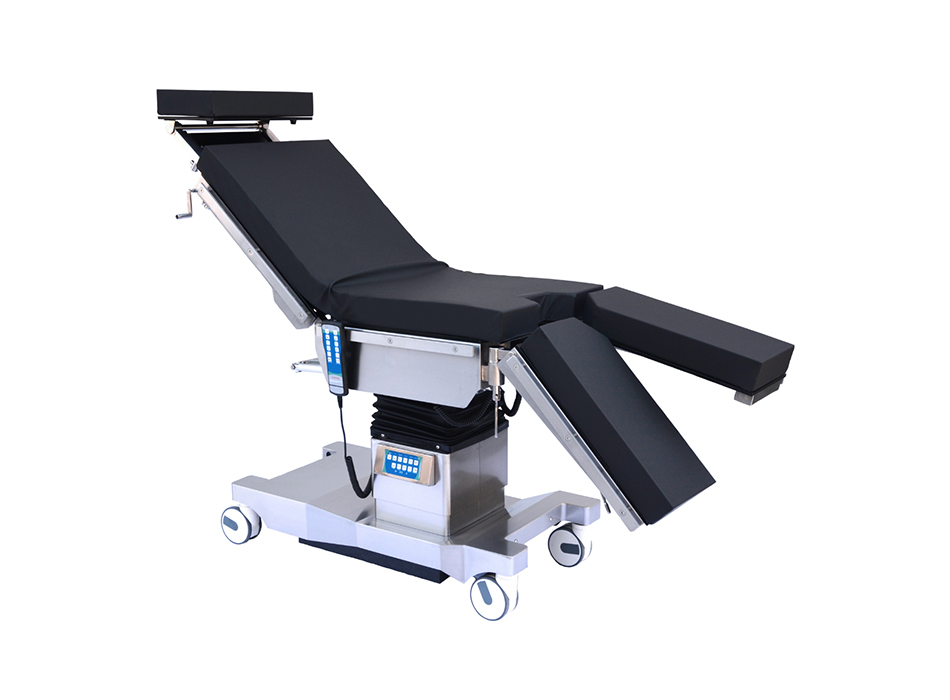

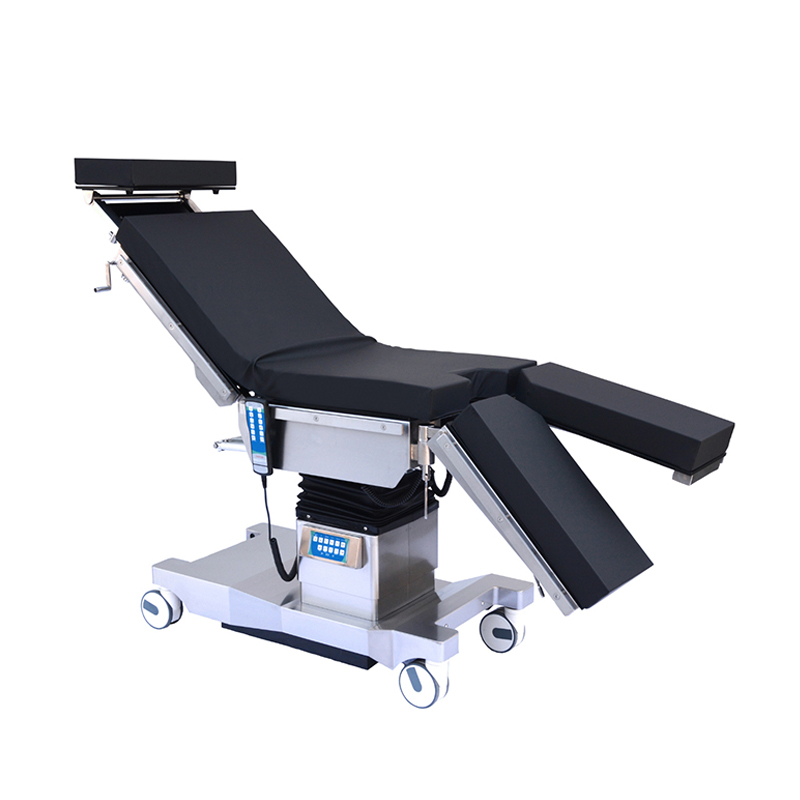

YGD03 Stainless steel electric operation table
YGD03 Electric Operating Table
Professional Multi‑Purpose Surgical Table for Operating Rooms
Ⅰ. Product Overview
YGD03 electric operating table is designed for a wide range of surgical procedures, including general surgery, gynecology, urology, ENT, and orthopedics. It delivers stable, precise, and safe positioning to support complex operations while ensuring patient comfort and clinical efficiency.
Ⅱ. Key Features
Premium Structure & Materials
Frame, side rails, base cover, and column cover made of SUS304 stainless steel for durability, corrosion resistance, and easy disinfection.
4‑section tabletop: head, back (with waist bridge), hip, leg sections.
High‑strength X‑ray translucent tabletop, fully compatible with C‑arm imaging for intraoperative fluoroscopy.
Intelligent Electric Control
All adjustments powered by electric push rods:
Lifting ● Forward/backward tilt ● Left/right tilt ● Backplate flexion/extension ● Table translation

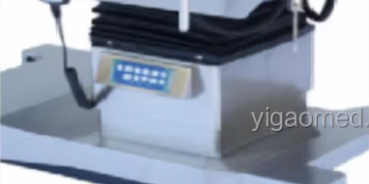

Dual control system: Hand‑held remote + fixed column controller.
Redundant design ensures full operation if one controller fails.
Flexible Positioning Accessories
Double‑joint headboard: Adjustable to full horizontal alignment with the tabletop.
Gas‑spring controlled leg plate for smooth, quiet folding.
Manual crank‑controlled built‑in waist bridge for enhanced surgical exposure.
Mobility & Stability
German TENTE central‑lock silent casters.
3‑mode central brake: directional ● universal ● brake for secure maneuvering and locking.
Comfort & Clinical Safety

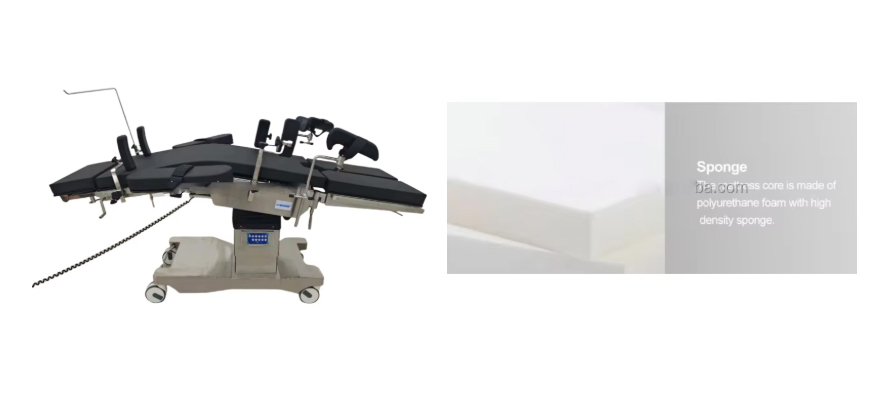

High‑grade memory foam mattress (≥6 cm thick).
Antibacterial, antistatic, pressure‑relief, easy to clean, stain‑resistant.
Helps prevent pressure ulcers during long surgeries.
Battery backup: Supports ≥80 minutes of full positioning adjustments without AC power.
Static load capacity: 297 kg for robust stability.
Product Description
This product is suitable for surgery, gynecology, urology, otolaryngology, orthopedics.
The table frame, side rails, bottom cover and column cover are all made of SUS304 stainless steel.
The table is divided into four parts: head, back (including waist bridge), hip and leg parts; the desktop is made of high-strength composite material with X-ray transmittance; it can be used with a C-arm to take pictures.
The lifting and lowering of the workbench, front and back tilting, left and right tilting, up and down folding of the backboard, and translation are all controlled by electric push rods.
The product has a dual control system: a handheld L controller and a column fixed controller. When one fails, the other can be enabled.
The headboard adopts a double joint structure, which can be adjusted to make the headboard and the table horizontally parallel.
The leg board is controlled to fold up and down by a gas spring.
The handle shakes to make the built-in waist bridge rise and fall.
German tent central control silent casters.
The mattress uses high-grade memory foam pad, with a thickness of ≥ 6 cm, which is antibacterial, easy to clean and corrosion-resistant; it has antistatic and decompression effects, and it can also prevent patients from having bedsores during long-term surgery.
When the battery is fully charged, it can operate continuously without AC power, and the adjustment time of the surgical position is not less than 80 minutes
The static load of the whole machine is 297 kg.
 |
Kidney Bridge Built-in kidney bridge, more convenient and nice appearance. |

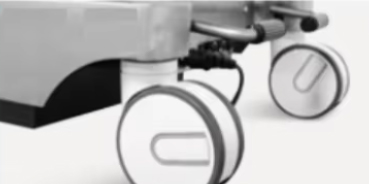

| Wheel 6" castors import from germany. |
 |
 |
Hydraulic System Brand hydraulic system (German Hoerbiger)make table with low noise,high safety and reliability. |

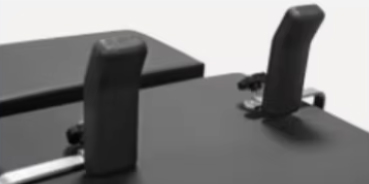

| Shoulder Support with Cushion |  |
 |

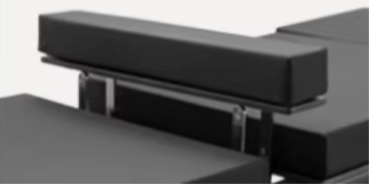

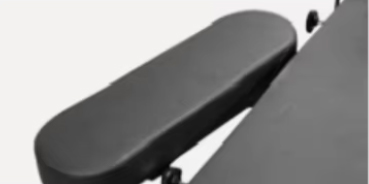

Arm Support with Cushion |

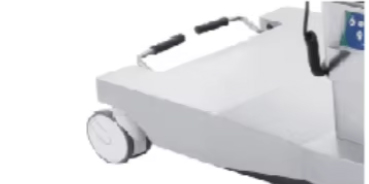

| Braking System Pedal Brake, Easy To Move And Lock. |
 |
 |

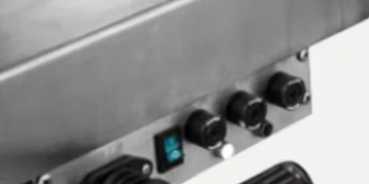

Powder Supply Internal battery maintaining power supply for 50-80 operations and with low battery warning function. |

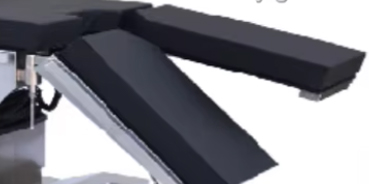

| Leg Plate Leg Plate With Imported Gas Spring For Easy Control. |
 |
 |
Body Support with Cushion |
|
Table length |
2100mm |
|
Table width |
550mm |
|

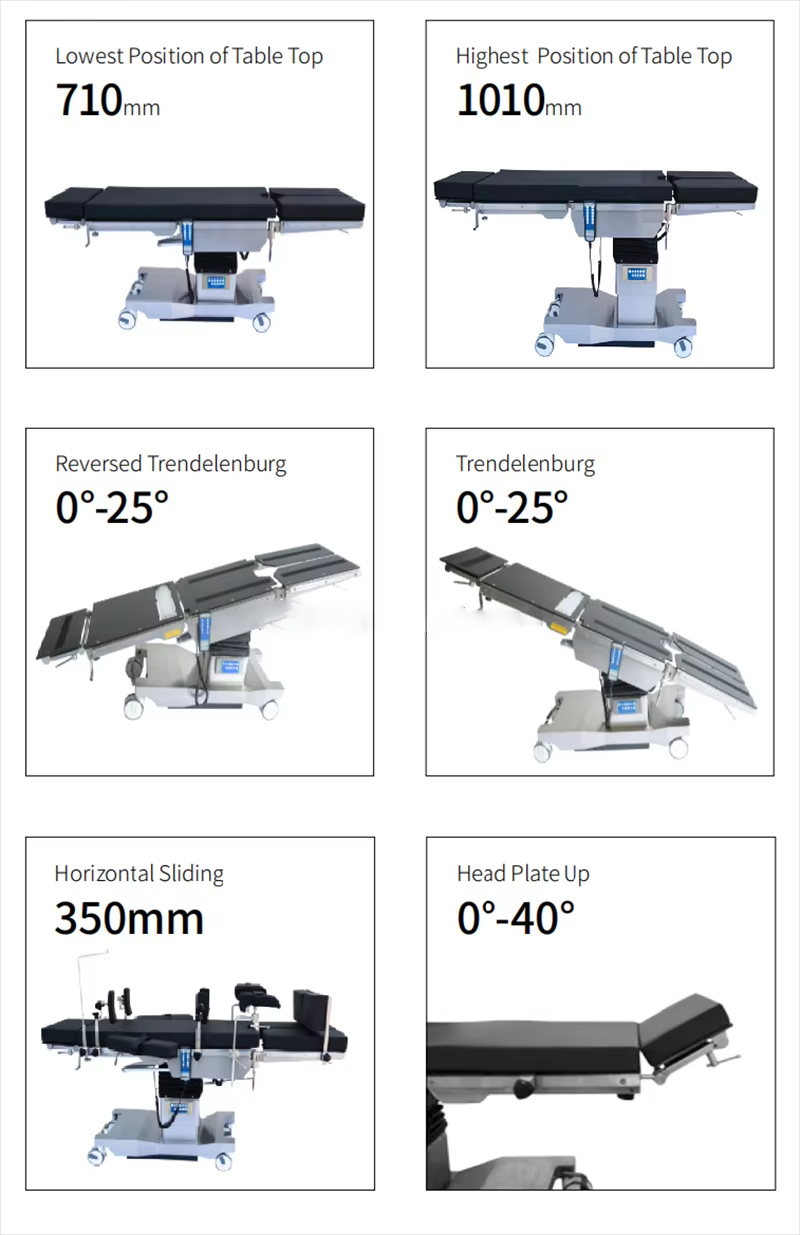

Table lifting |
700-1000mm |
|

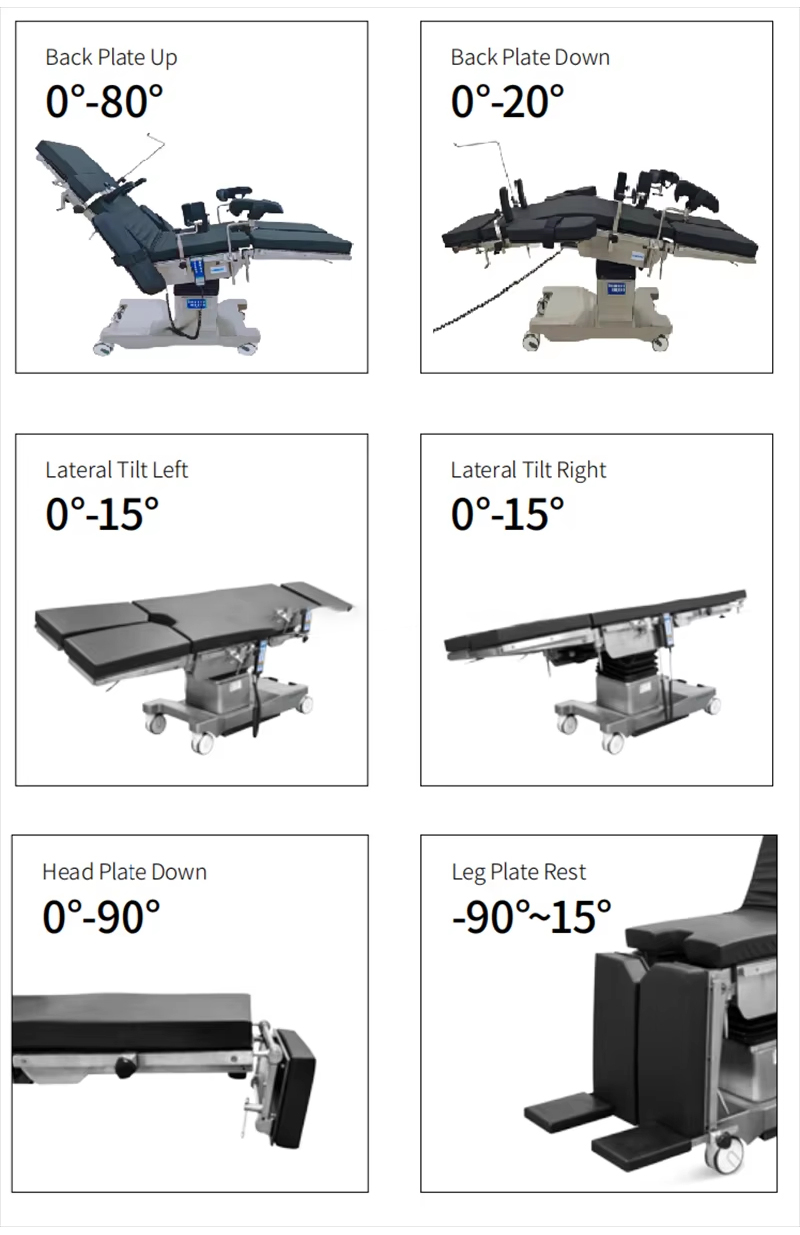

Headboard upwards/downwards |
≥45°/ ≥90° |
|

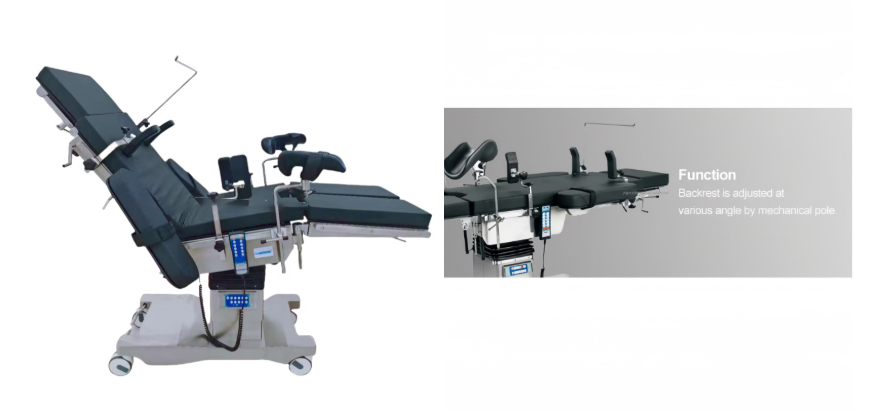

Backboard upwards/downwards |
≥80°/ ≥17° |
|
Leg board upwards, downwards/outstretched |
≥ 15°/ ≥ 90°≥ 180° |
|

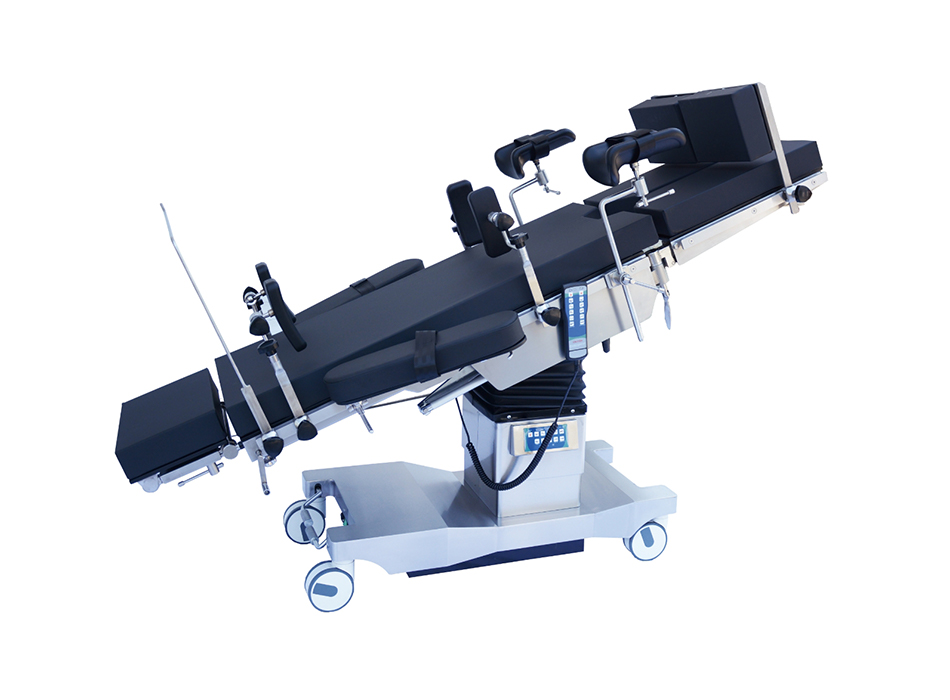

Forward tilt/ Backward tilt |
≥25° |
|
Left and right tilt |
≥15° |
|
Waist bridge lifting |
≥120mm |
|
Translation distance |
350mm |

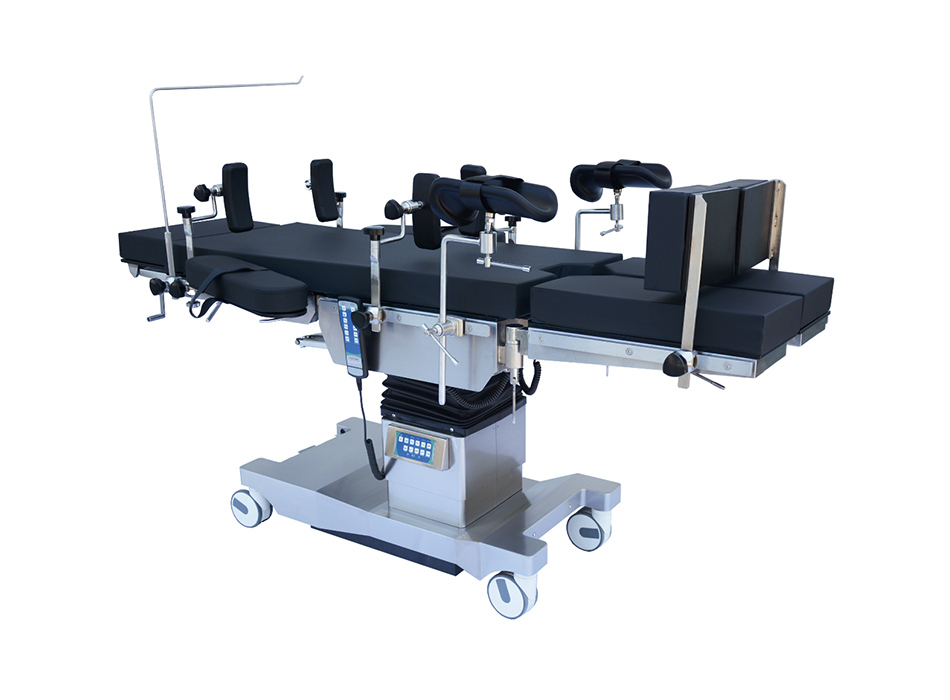

| Item | Quantity |
| Anesthesia protective screen | 1 piece |
| Shoulder support | 1 set |
| Hand rest | 1 set |
| Body support | 1 set |
| Leg support | 1 set |
| Mattress | 1 set |
| Hand held operator | 1 set |
