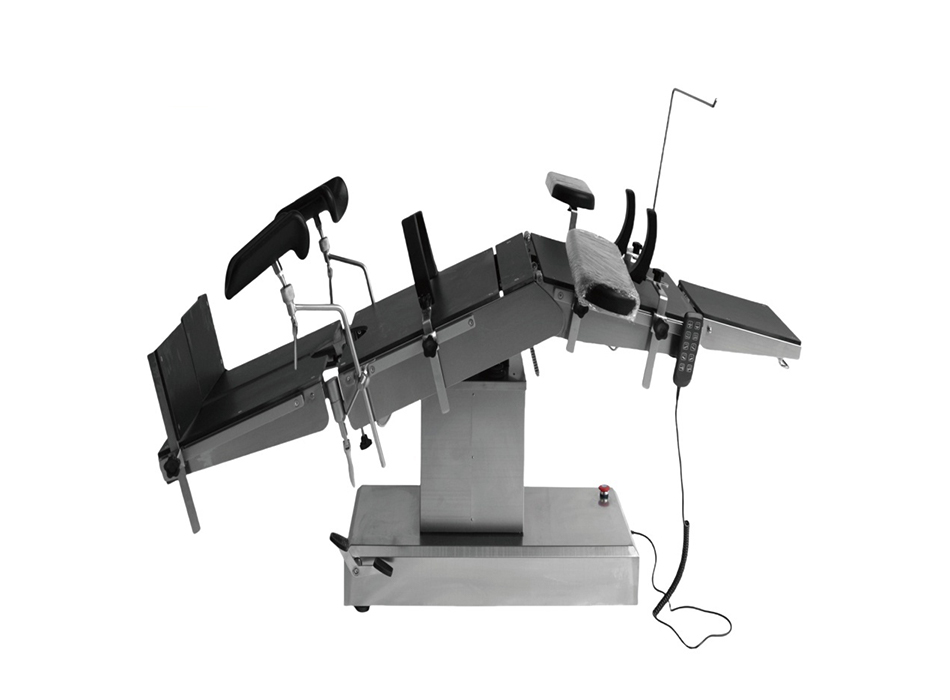

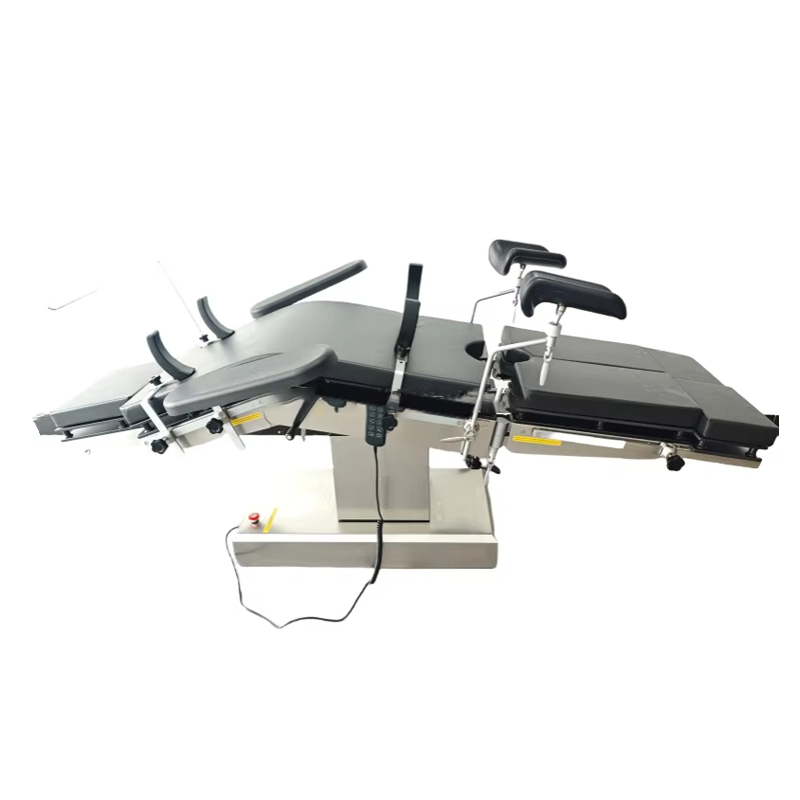

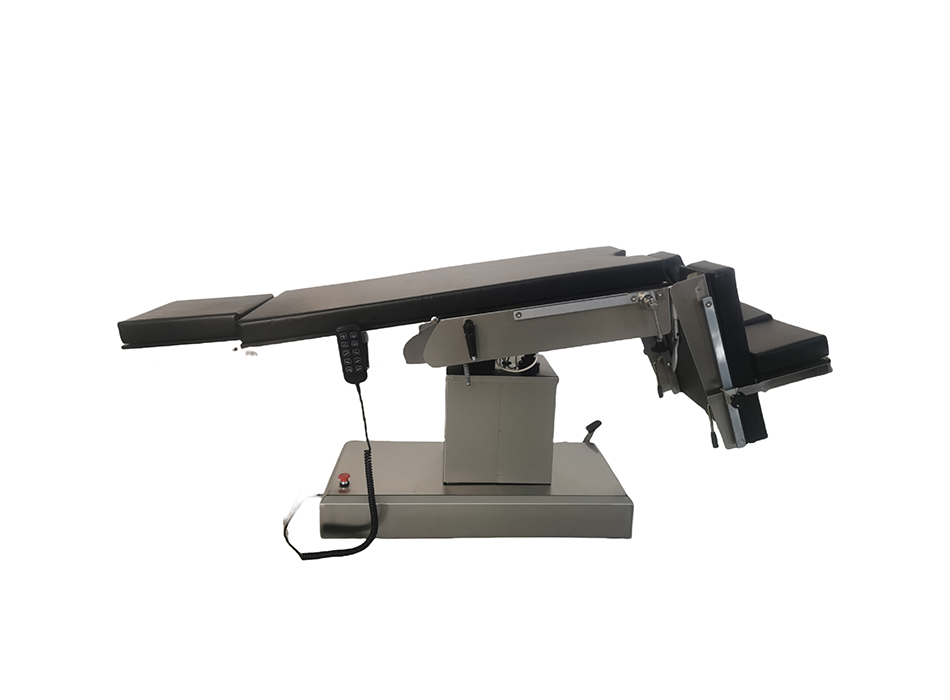

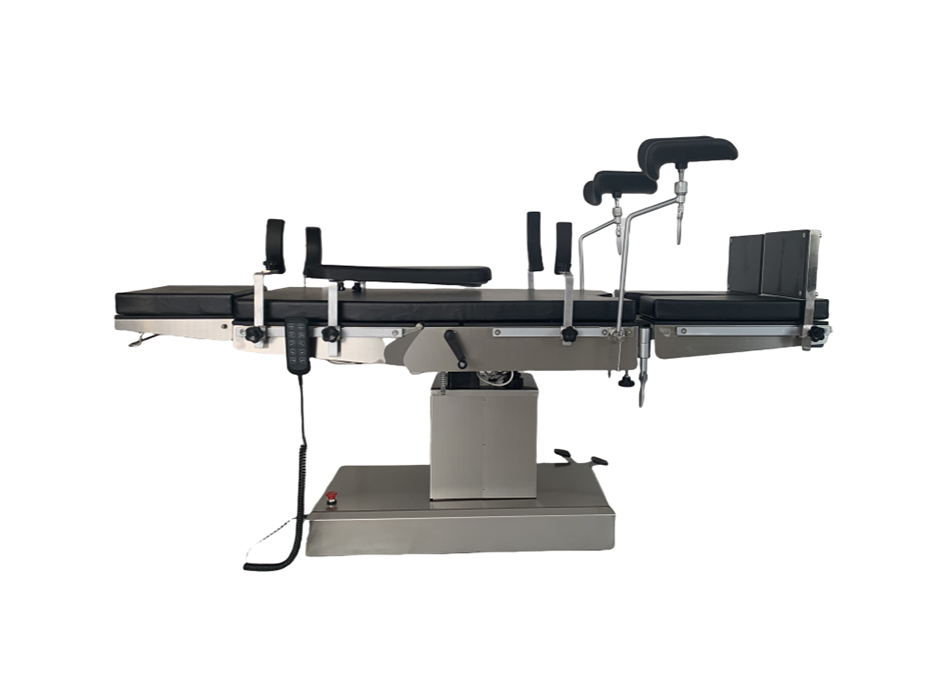

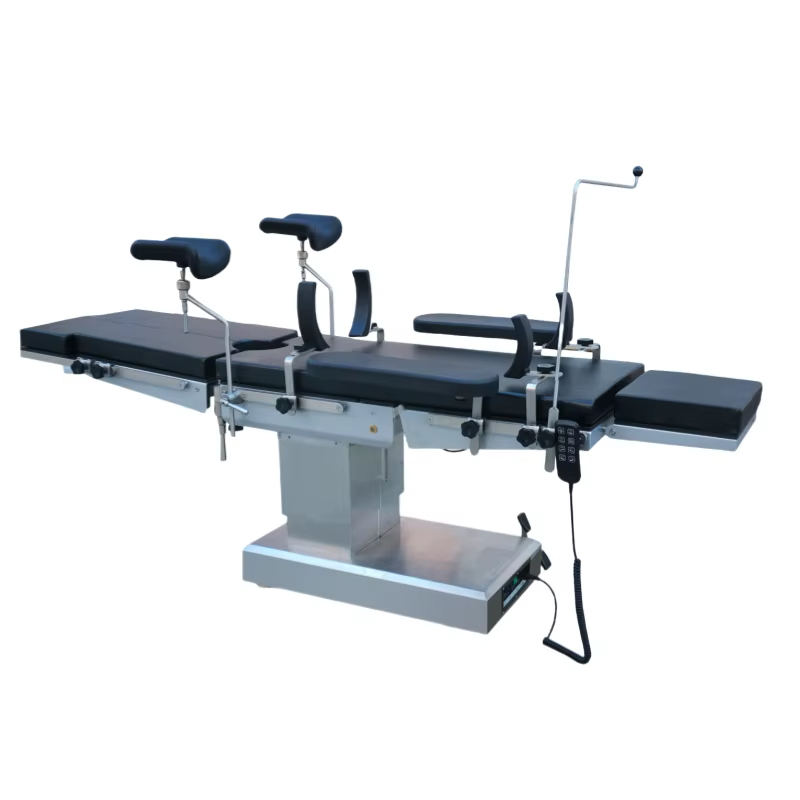

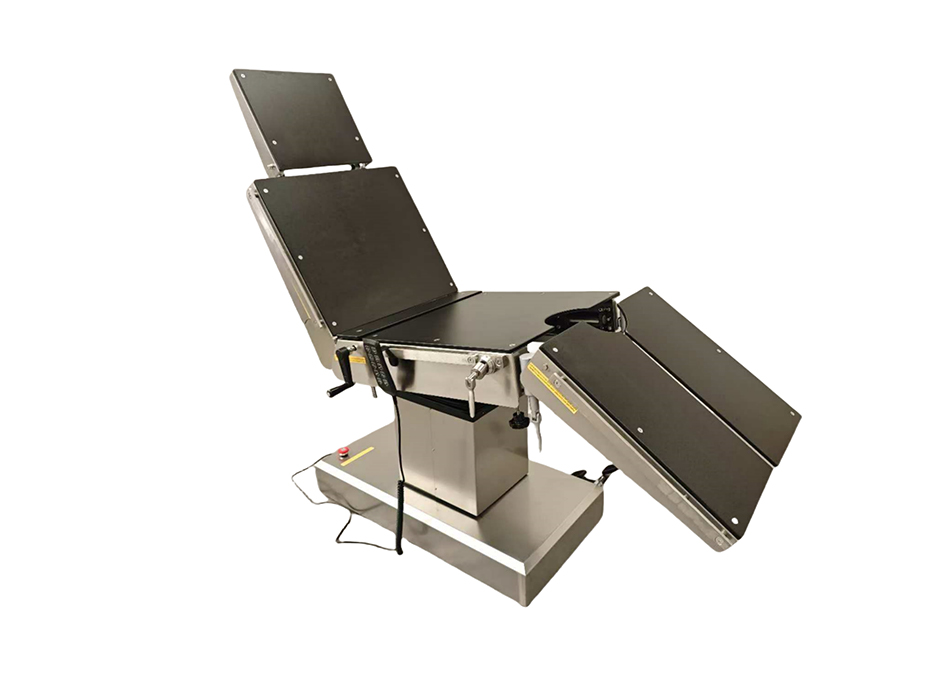

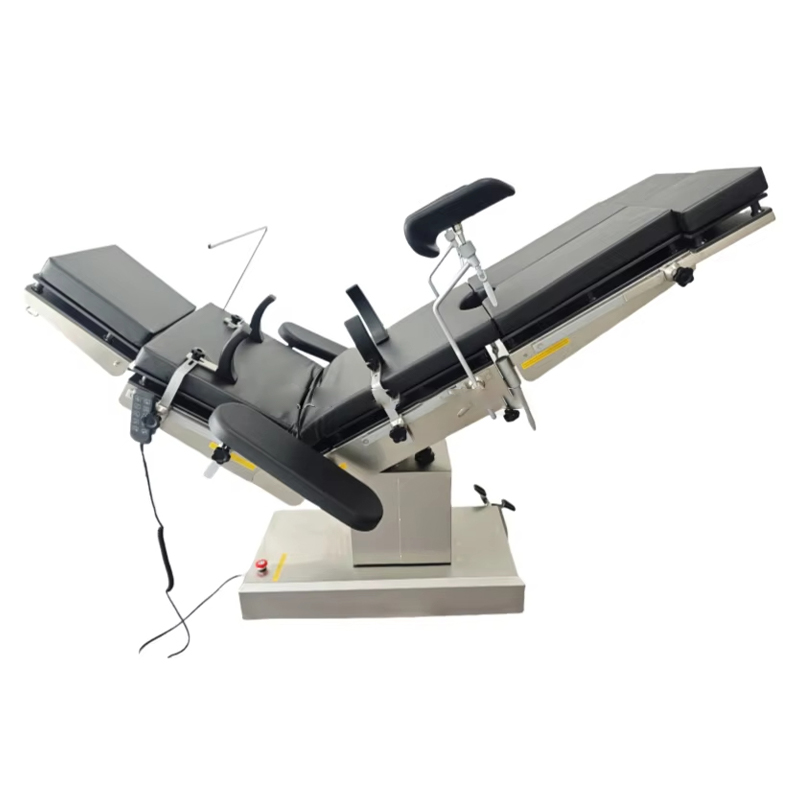

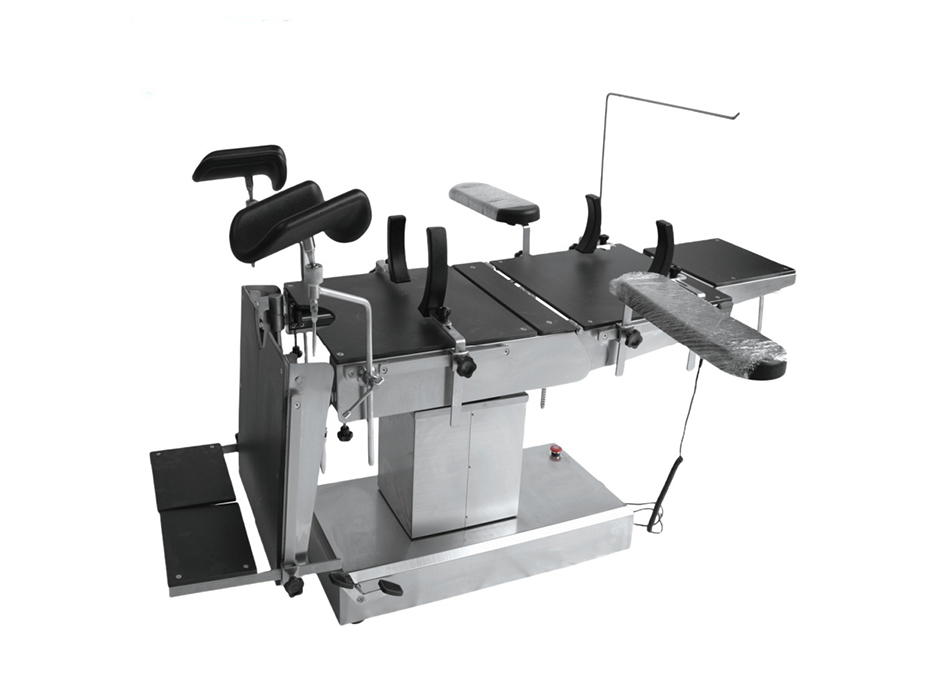

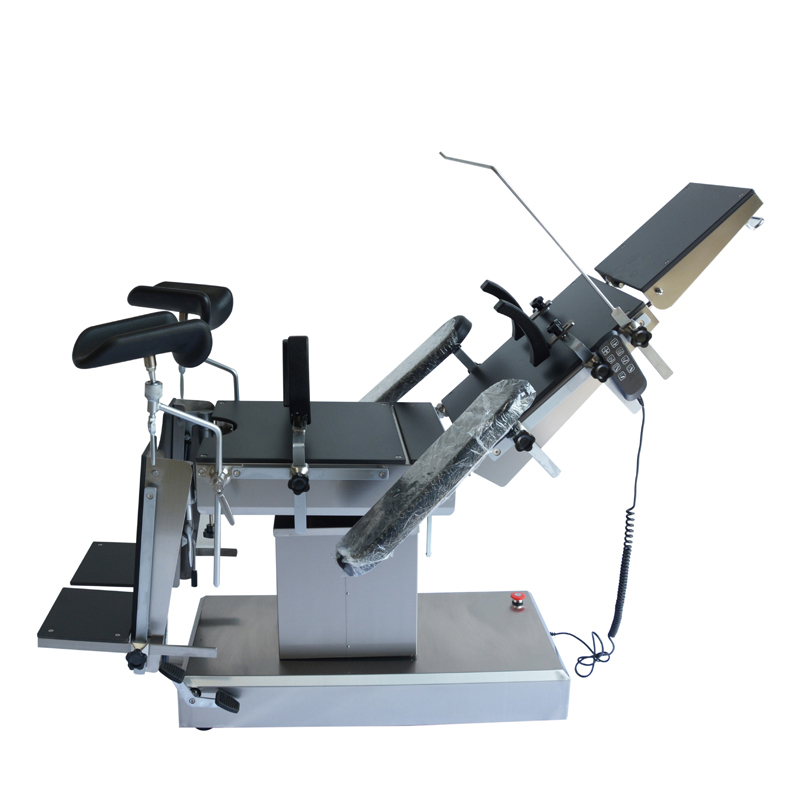

YGD04 Orthopedic medical electrical operating table
1. The product is suitable for surgery, gynecology, urology, otolaryngology, and orthopedics.
2. The table is divided into four sections: head, back, hip (including waist bridge), and leg section. The tabletop is made of high-strength composite material with X-ray transmission; it can be used with C-arms.
3. The functions of table lifting, backward and forward tilt, left and right tilt, and translation are all controlled by a single electric push rod; The folding up and down of the backboard is driven and controlled by a double electric pushrod.
4. The folding up and down of head headboard and legboard is controlled by a gas spring structure.
5. The handle shake makes the built-in waist bridge go up and down.
6. Mechanical brakes.
7. The mattress is made of sponge with a thickness of ≥6cm, which is antibacterial, easy to clean, and corrosion-resistant.
8. Built-in battery, when the battery is fully charged, it can be operated continuously and uninterruptedly for no less than 80 minutes without an AC power supply.
9. The static load of the whole machine is 135kg.
Product Description

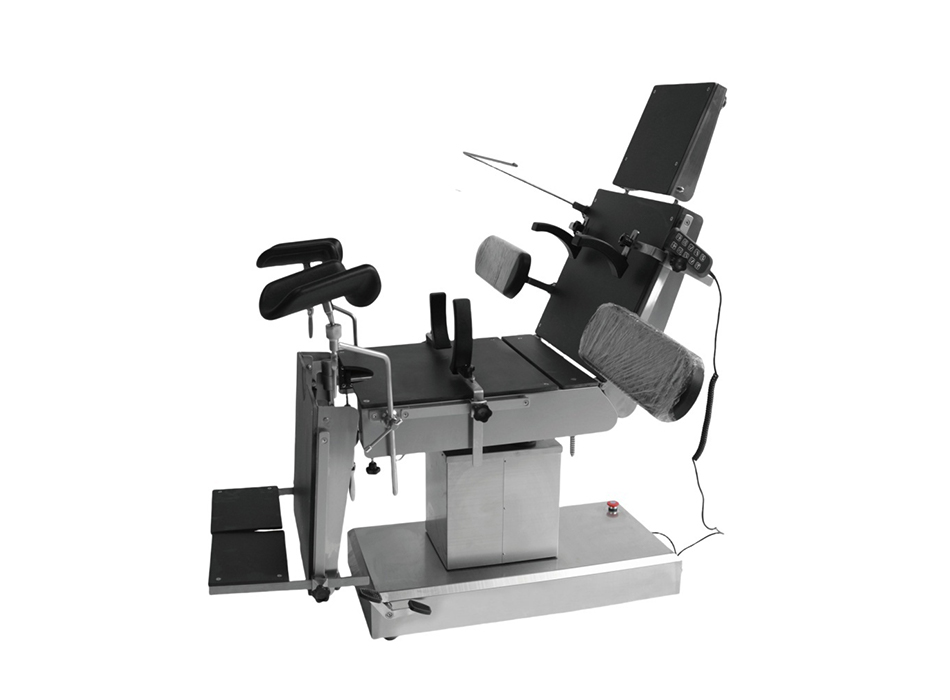

Surgical C-arm operating table
1. This product is used to support the patient's body during surgery.
2. The operating table is divided into four sections: head, rear hip (including waist bridge), and leg section.
3. The adjustment of the worktable lifting, front and back tilt, left and right tilt, and backboard rotation are all achieved through electric push rod transmission.

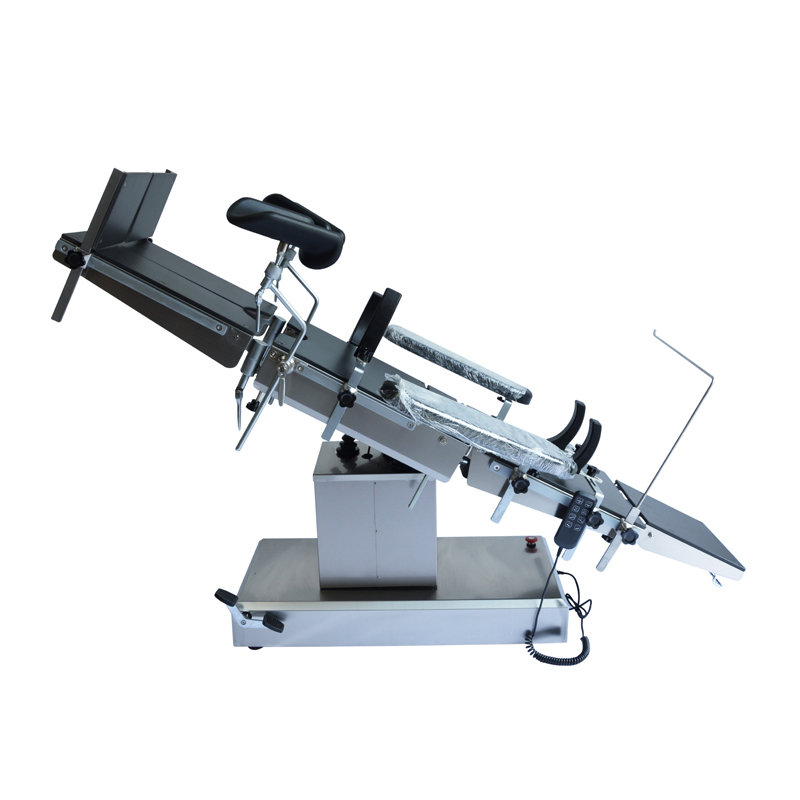

Orthopedic operating table
4. The tabletop is made of high-strength see-through material.
5. The head and leg boards use gas springs to control the up and down folding; the leg boards can be extended and separated.
6. Built-in battery, when the battery is fully charged, it can run continuously and uninterruptedly for no less than 80 minutes without AC power.

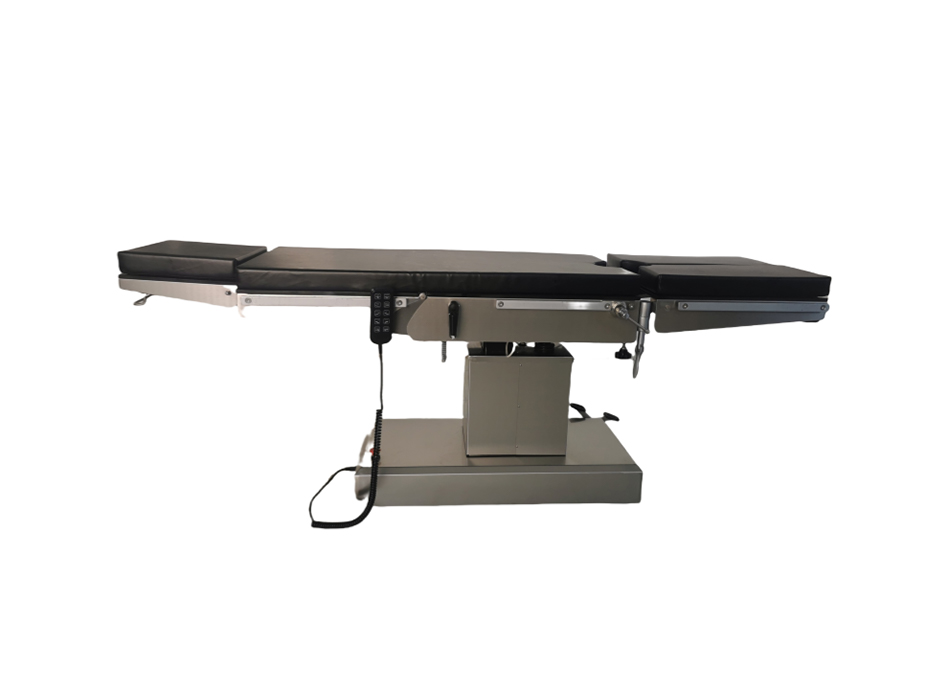

Electric operating table
7. Mechanical brake.
8. Shake the handle to make the built-in waist bridge rise and fall.
9. The static load of the whole machine is 135 kg.
|
Table length |
2100mm |
|
Table width |
550mm |
|
Table lifting |
710-960mm / 720-970 |
|
Double layer table lifting |
760-1010mm |
|
Headboard upwards/downwards |
≥55°/ ≥90° |
|
Backboard upwards/downwards |
≥65°/ ≥30° |
|
Leg board downwards/ outreached |
≥ 90° |
|
Forward tilt/ Backward tilt |
≥30 / °≥25° |
|
Left and right tilt |
≥20° |
|
Waist bridge lifting |
≥120mm |
|
Translation distance |
350mm |
| Item | Quantity |
| Anesthesia protective screen | 1 piece |
| Shoulder support | 1 set |
| Armrest | 1 set |
| Body support | 1 set |
| Leg support | 1 set |
| Mattress | 1 set |
| Hand held operator | 1 set |
