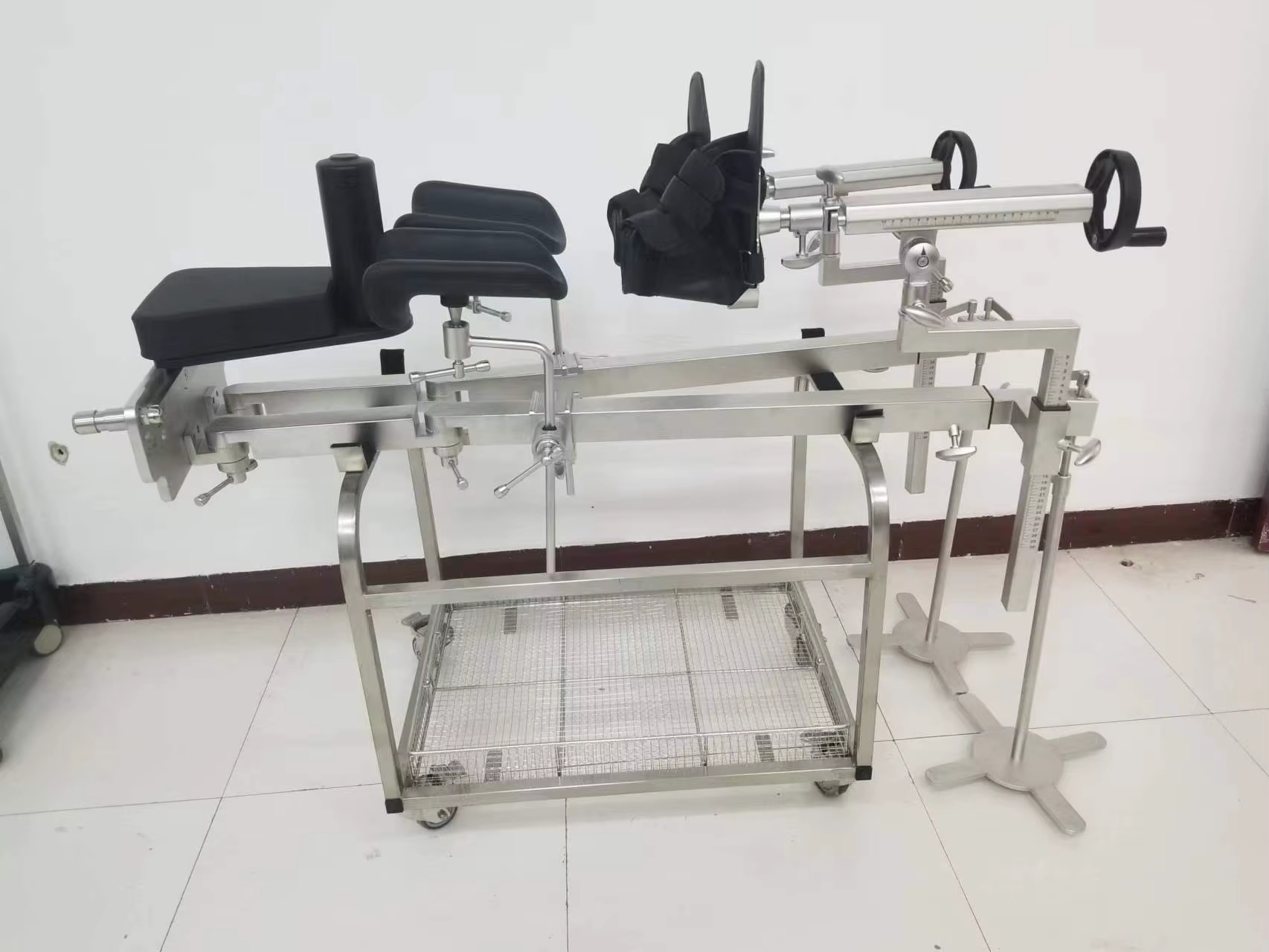

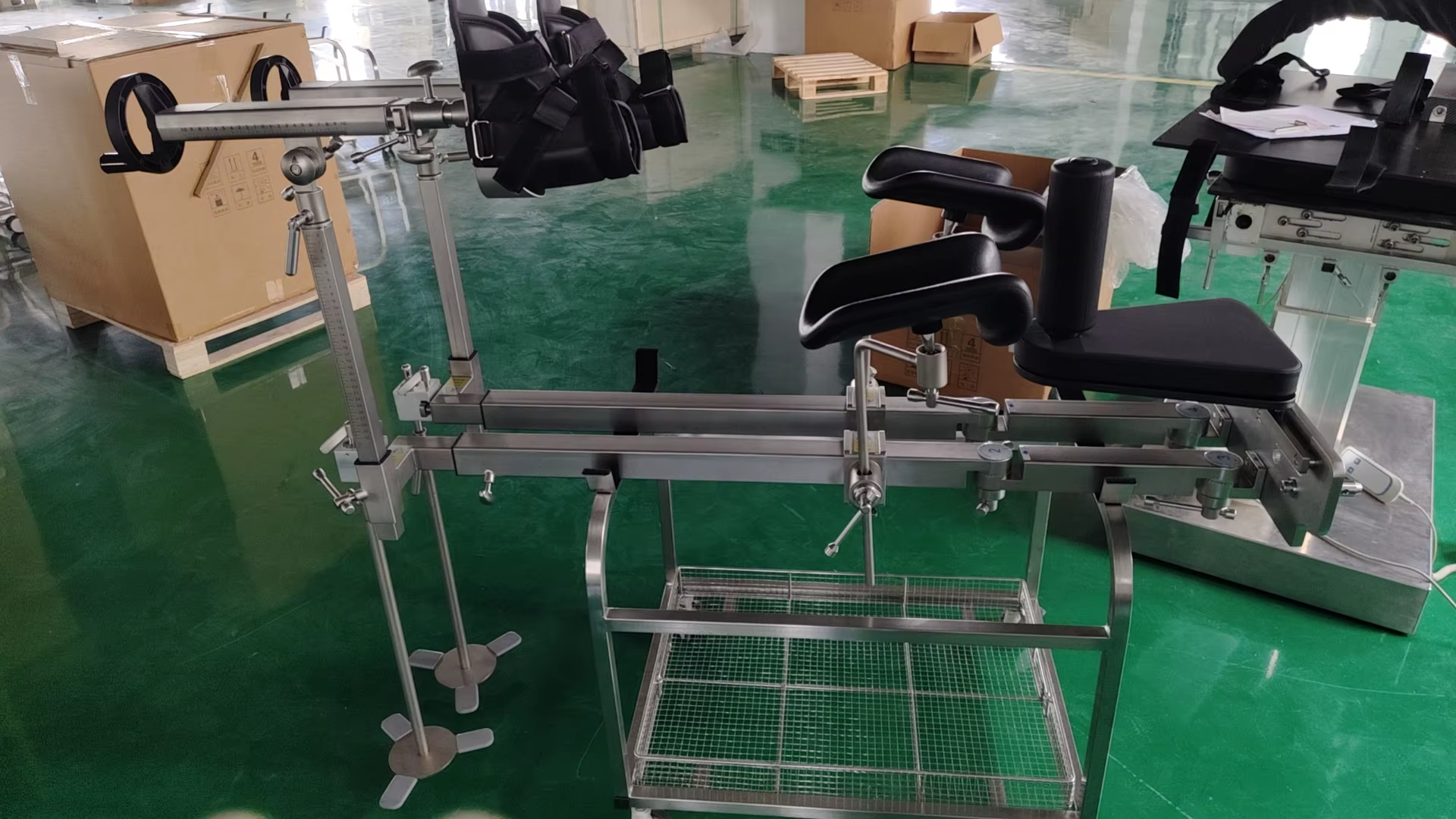

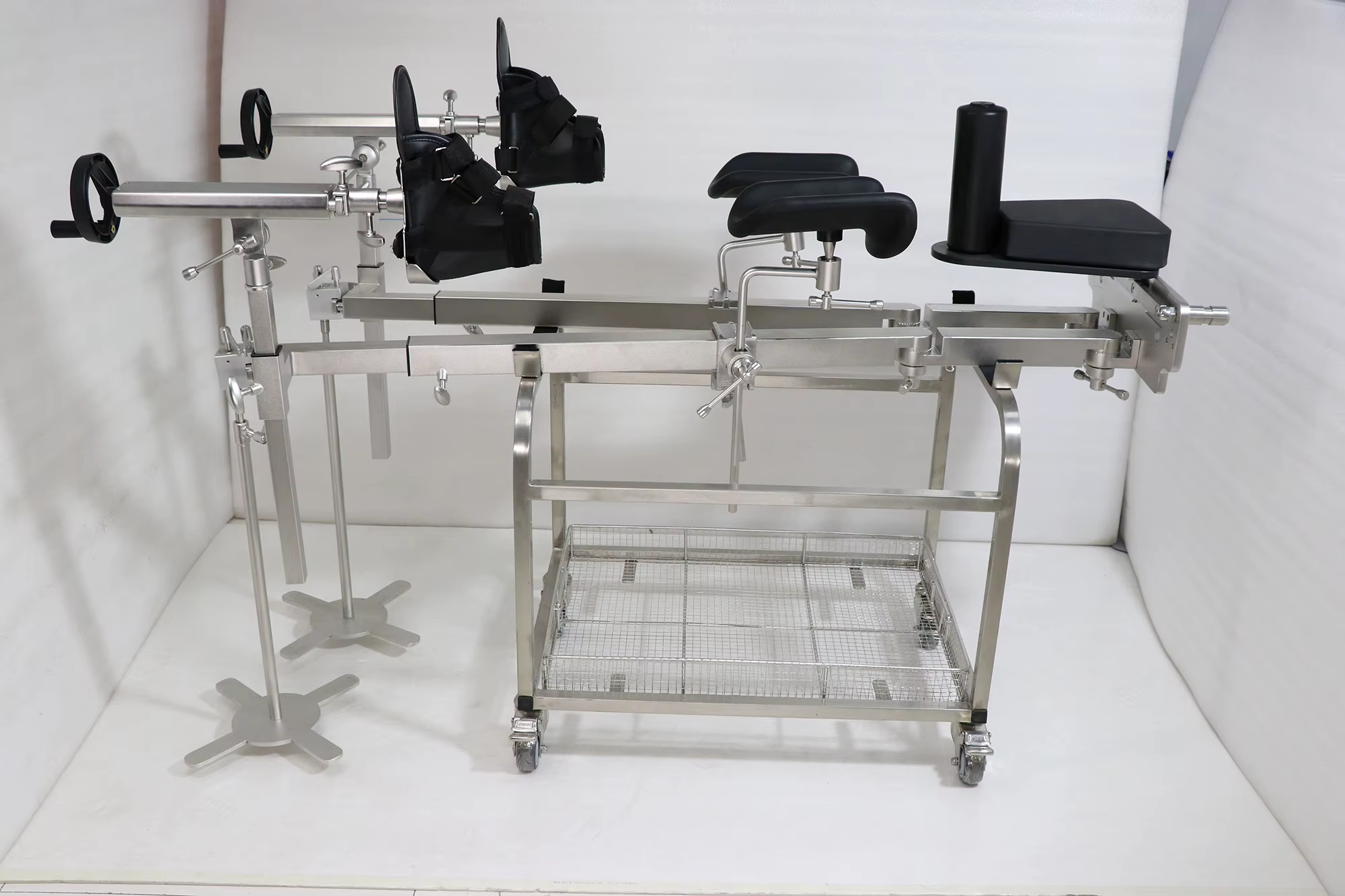

YGG02 Stainless steel orthopedic Traction Frame

YGG02 Stainless steel orthopedic Traction Frame is specially designed for orthopedic surgery and is mainly used for lower limb traction in conjunction with an operating table. Made of high-strength 304 stainless steel, it has excellent corrosion resistance and oxidation resistance, ensuring long-term and stable use of the equipment. The angle adjustment part of the traction frame adopts an end-tooth locking process to ensure that the angle is accurately fixed and will not loosen. The double-joint design and retractable extension rod allow the traction frame to be freely adjusted at multiple angles, providing a more flexible traction method, ensuring a wide surgical field of view, and a smooth surgical process. The traction frame has strong adaptability, is easy to operate, can be quickly installed and adjusted, and is compatible with a variety of operating tables. It is widely used in fracture correction, joint replacement, and other surgeries.

Contact Us
  • YGG02 Stainless steel orthopedic Traction Frame
  • YGG02 Stainless steel orthopedic Traction Frame
  • YGG02 Stainless steel orthopedic Traction Frame
PREV：YGG02 Carbon Fibre Orthopedic Traction Frame
NEXT：YGG01 Multifunctional orthopedic Traction Frame

Product Description

Extension rod (short) outreached

  ≥180°

Extension rod (short) length

  310mm

Extension rod (long) outreached

  ≥300°

Extension rod (length) length

  800mm ≥800mm

Horizontal movement

  ≥650mm

Vertical movement

  ≥380mm

Horizontal rotation angle

  360°

Vertical rotation angle

  360°

Traction shoe rotation angle

  360°

Traction lifting

  ≥190mm

Leg rest displacement

  ≥650mm

Perineal distance to column

  ≥220mm

Perineal outer diameter of column

  ≥100mm
Item Quantity
Perineal retaining post 1 piece
Connecting seat 1 piece
Hip board 1 set
Extension rod (short) 1 piece
Extension rod (length) 1 piece
Leg rest 1 set
Traction shoe 1 set
Auxiliary trolley 1 piece
