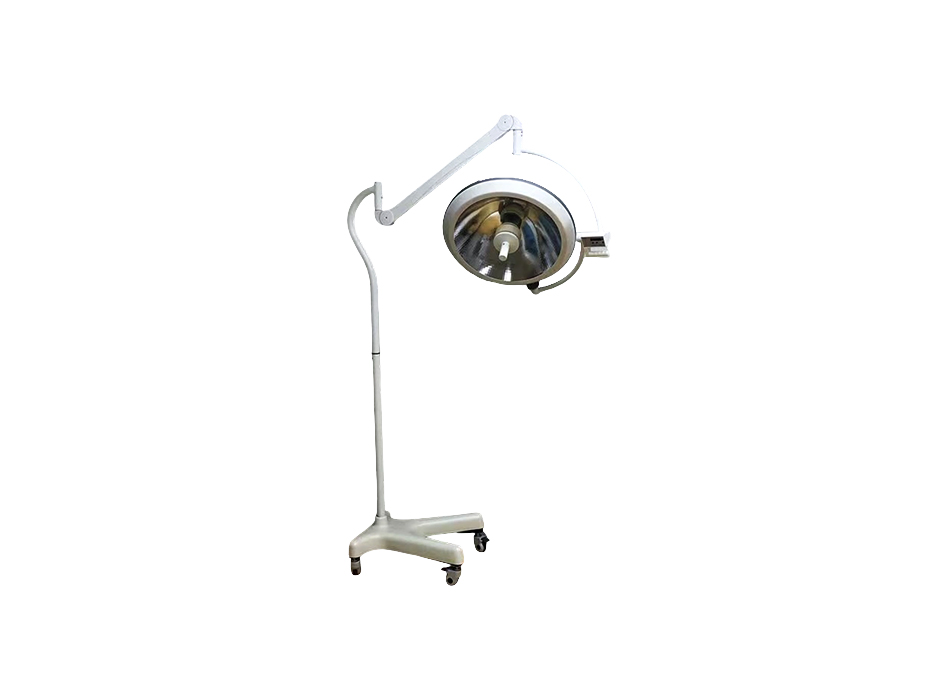

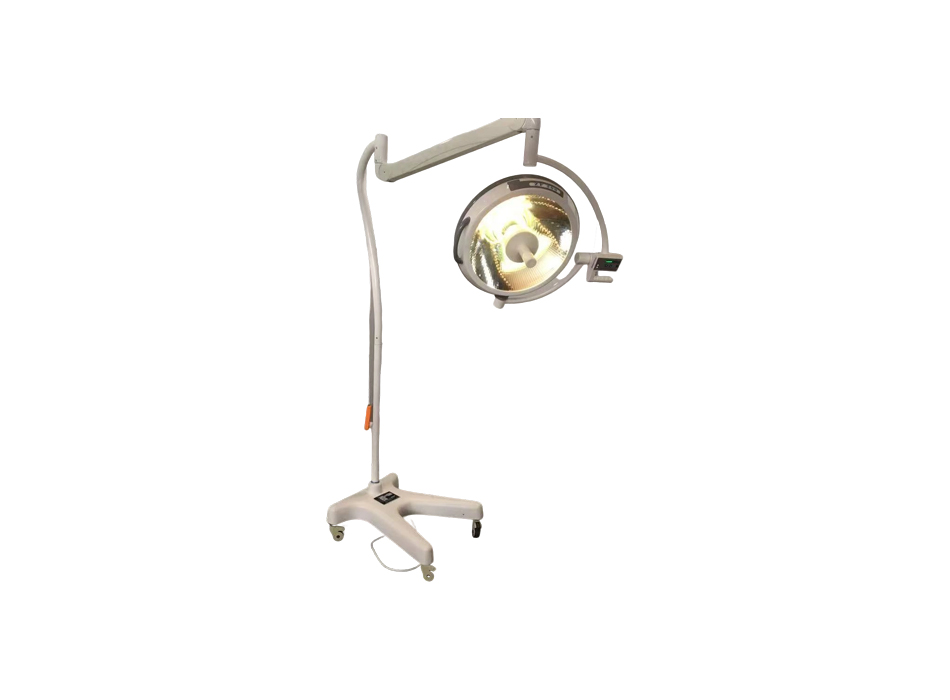

YGZF500 Overall reflective mobile shadowless lamp

The unique multi mirror reflective technology has been precisely designed by the computer, with 3584 pieces per 700 lamp body and 2150 multifunctional filter reflective mirrors per 500 lamp bodies. Special optical coating materials are used to achieve perfect lighting effects. Uniform beam of light, eliminating glare phenomenon; Excellent cold light effect, adopting a comprehensive two-stage infrared filtering design, which filters out 99.7% of radiant heat. During long-term surgery, the temperature rise under the lamp head does not exceed 2 ℃.

Excellent deep illumination, the unique structure of the multifunctional reflection system focuses the beam into a high brightness light column, with a depth of up to 80cm; The focusing sequence enables numerous focusing points to accurately cover the focusing surface, ensuring a soft and uniform deep focusing effect: electric/manual focusing technology brings revolutionary breakthroughs to shadowless lamp operation.

Excellent shadowless effect, the principle of the multi mirror system enhances the light at the edge of the lamp head and potential shadow areas: even if the brightness is reduced due to obstacles, the shadowless effect and brightness of the surgical field remain good.

Streamlined lampshade minimizes the interference of vertical laminar flow and reduces visual disturbances in the operating room. The dust-proof, dust-proof, and waterproof design makes the entire shadowless lamp beautiful and smooth in appearance, easy to clean and disinfect, sturdy and durable, and exceptionally lightweight.

Product Features

The light bulb uses the German-imported "Osram" brand, with a service life of over 1500 hours and strong illumination. With a spot diameter of 16cm, it can provide up to 160000 lux of light intensity.

◇ 340 ° -360 ° rotatable, capable of precise positioning at any desired position.

The lamp head is equipped with an intelligent conversion device. When the main bulb interrupts the lighting due to a malfunction, the backup bulb automatically replaces the position of the main bulb within 0.1 seconds to ensure continuous and unchanged lighting effect.

◇ Ergonomic detail design, integrated power switch and button type digital display dimming can be adjusted according to requirements.

Contact Us
  • YGZF500 Overall reflective mobile shadowless lamp
  • YGZF500 Overall reflective mobile shadowless lamp
  • YGZF500 Overall reflective mobile shadowless lamp
PREV：YGLED500 LED Mobile Surgical Shadowless Lamp
NEXT：YGLED 500/700 LED Surgical Shadowless Lamp

Product Description

Parameter

ZF500

Lamp Head Diameter (MM)

500

Illuminance (at 1M distance LUX)

150000

Color Temperature K

4300±500

Spot Diameter MM

100—300

Illumination Depth MM

≥1200

Brightness Adjustment

1-100

Color Rendering Index CRI

≥97%

Color Reproduction Index RA

≥97%

Temperature Rise at the Surgeon's Head

≤1

Temperature Rise in the Surgical Field

≤2

Power Supply Voltage

220V±22V 50HZ±1HZ

Input Power

400VA

Average lifespan of light bulbs (h)

   ≥1500

Light bulb power

150W

Switching time of main and auxiliary light bulbs

≤0.1秒
