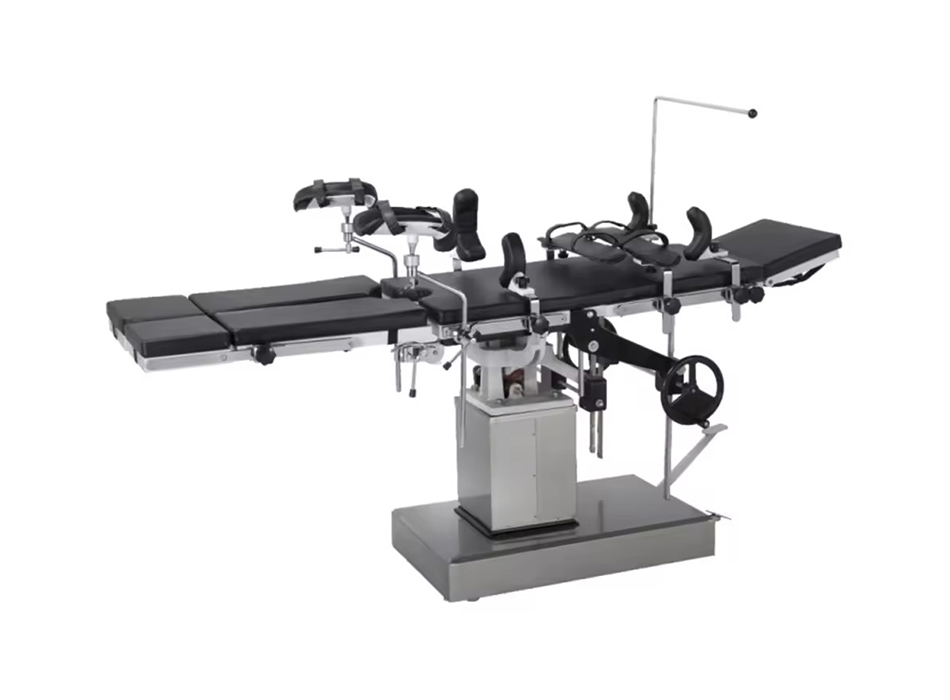

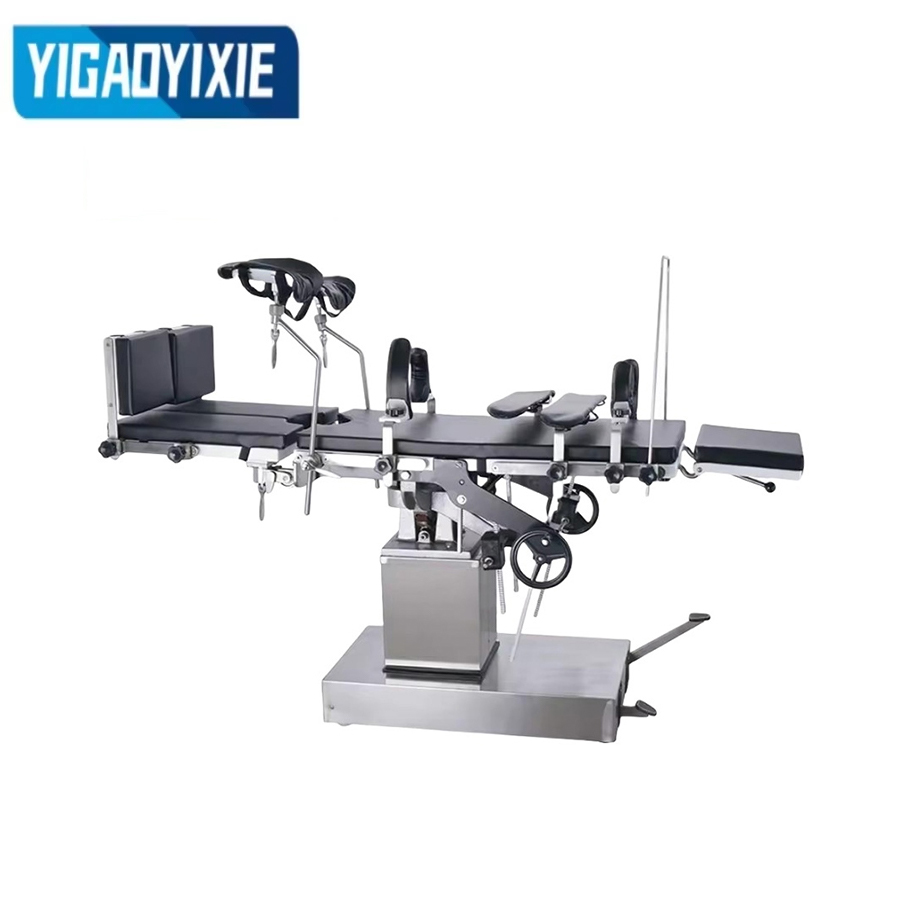

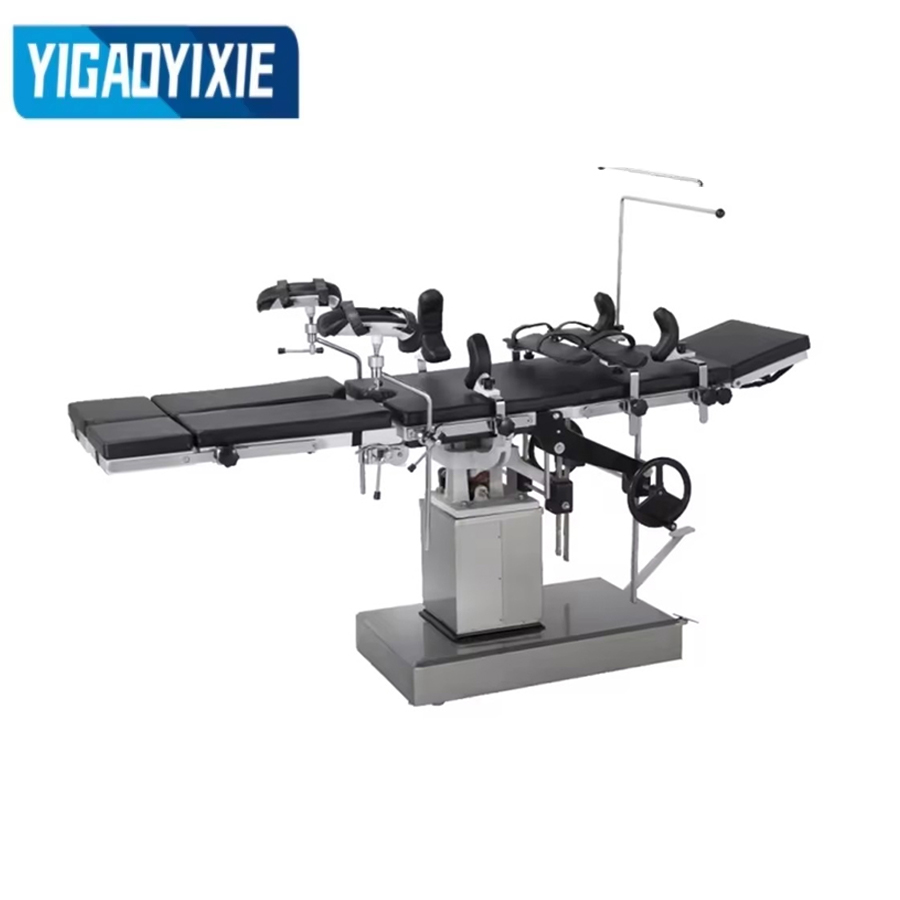

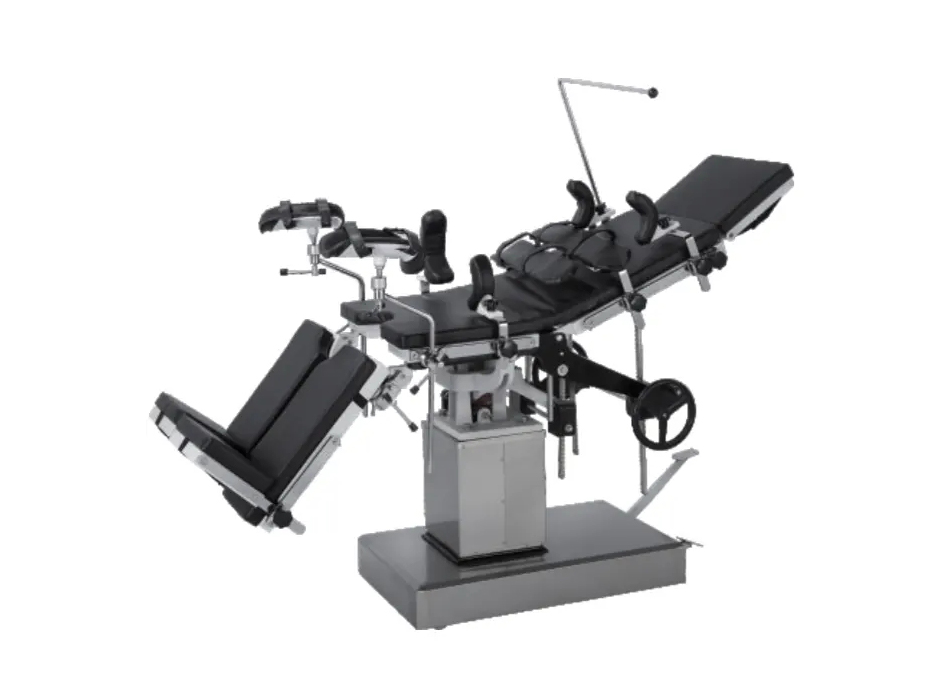

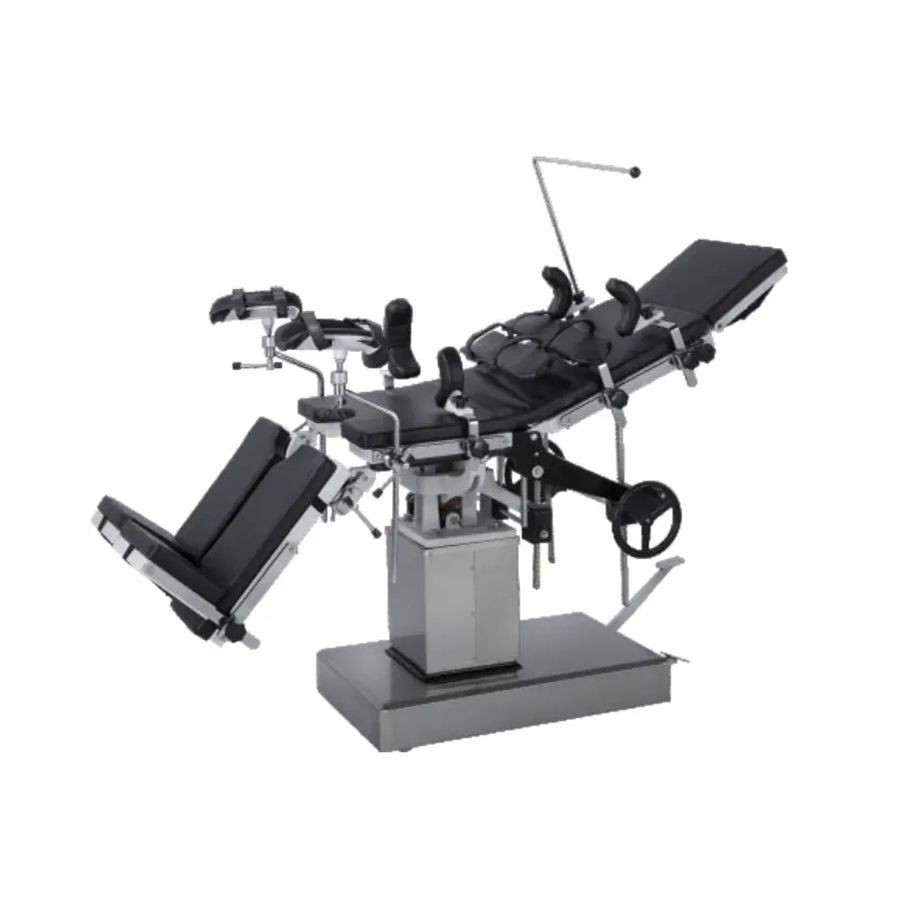

YGS3001A Orthopedics hydraulic operating table

YGS3001A Orthopedics hydraulic operating table is a high-performance medical device designed for orthopedic surgery. It has a solid structure and flexible adjustment, and can provide patients with stable support and precise position adjustment. The operating table consists of a headboard, backboard, waistboard, shipboard, and split legboard. The lifting, tilting, and adjustment of each component can be precisely controlled by hand-cranked gears, worm gears, and rack systems to ensure the comfort and stability of patients during surgery. The hydraulic lifting system is driven by a foot-operated hydraulic pump, which is easy and stable to operate and can meet the needs of frequent adjustments. The tabletop of the operating table is made of spray-coated carbon steel, which is corrosion-resistant and easy to clean, while the base and column shell are made of stainless steel to ensure long-term and stable use of the equipment.

Contact Us
  • YGS3001A Orthopedics hydraulic operating table
  • YGS3001A Orthopedics hydraulic operating table
  • YGS3001A Orthopedics hydraulic operating table
PREV：YGS3002A General operating table
NEXT：YGS3001 Stainless steel hydraulic operating table

Product Description

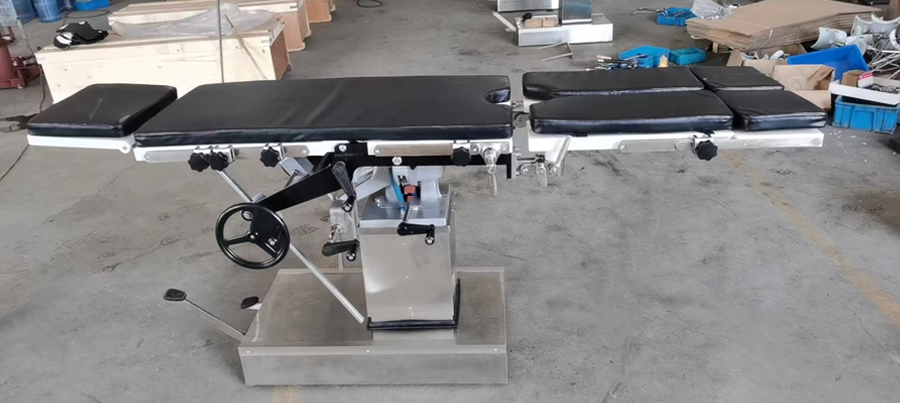

Manual hydraulic operating table
5. Carbon steel spray-coated tabletop.
6. The base guard plate and column guard plate of the operating table are made of stainless steel

Manual operating table
1. This product is used to support the patient's body during surgery.
2. The operating table consists of a head board, a back board, a waist board, a hip board, and a split leg board.
3. The lifting of the workbench is achieved by repeatedly stepping on the foot pedal to drive the hydraulic oil pump.

Hydraulic table
4. The up and down folding, front and back tilting, left and right tilting of the back and leg boards are all achieved through the handshakes, worm gears and racks on both sides of the table. The head board is screw-locked; the waist board is hand-cranked; the up and down folding of the leg board is controlled by ratchet; the waist board is hand-cranked.

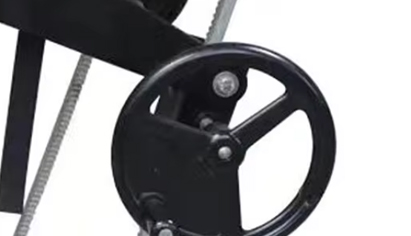

Handwheel
It is a manual operating table,
using a handwheel to adjust the
height.

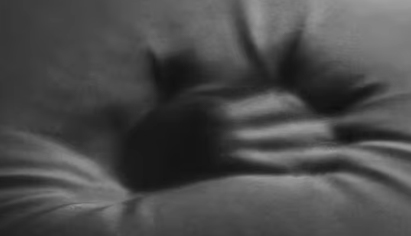

Memory pad with antistatic, waterproof design
High-density and high-elasticity sponge is soft and comfortable, with a fast springback force, and it is not easily deformed over long-term use. Tabletop can be available. All sections fit with the mattress, and are detachable for easy cleaning.

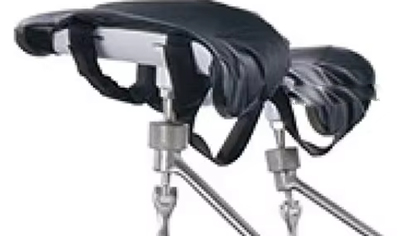

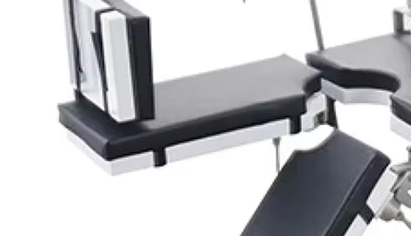

Leg Supports
Riser on both sides, adapt to legs
fixed, support correctly, keep legs
comfortable and convenient for
operation.All sections fit with
mattress, detachable for easy cleaning.
Free dismantling of the leg plate
Back plate adjustment by handwheel under the back plate.
Leg plate adjustment by handwheel under the back plate.
#304 stainless steel
The table panel frame is spray-coated, the column and basement are #304 stainless steel.

Table length

 2050mm

Table width

 500mm

Table lifting

 750-1000mm

Headboard upwards/downwards

 ≥45°/ ≥90°

Backboard upwards/downwards

 ≥75°/ ≥18°

Leg board Downwards

 ≥ 90°

Forward tilt/ Backward tilt

 ≥30° / ≥20°

Left and right tilt

 ≥18°

Waist bridge lifting

 ≥120mm
Item Quantity
Anesthesia protective screen 1 piece
Shoulder support 1 set
Armrest 1 set
Body support 1 set
Leg support 1 set
Foot board 1 set
Mattress 1 set
Hand-held operator 1 set
