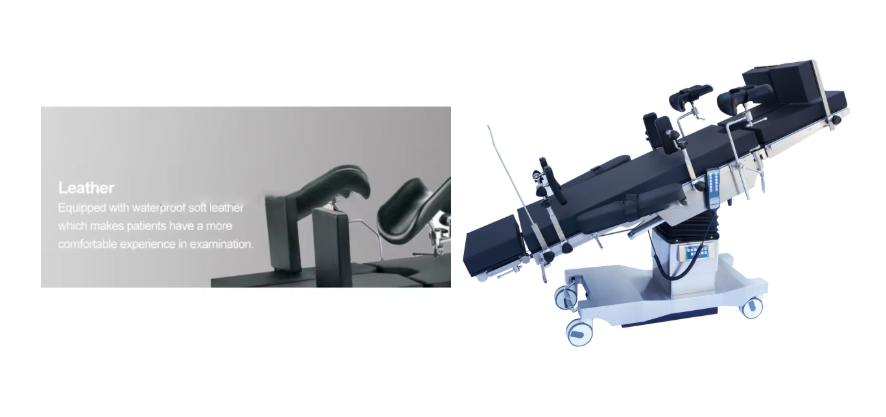

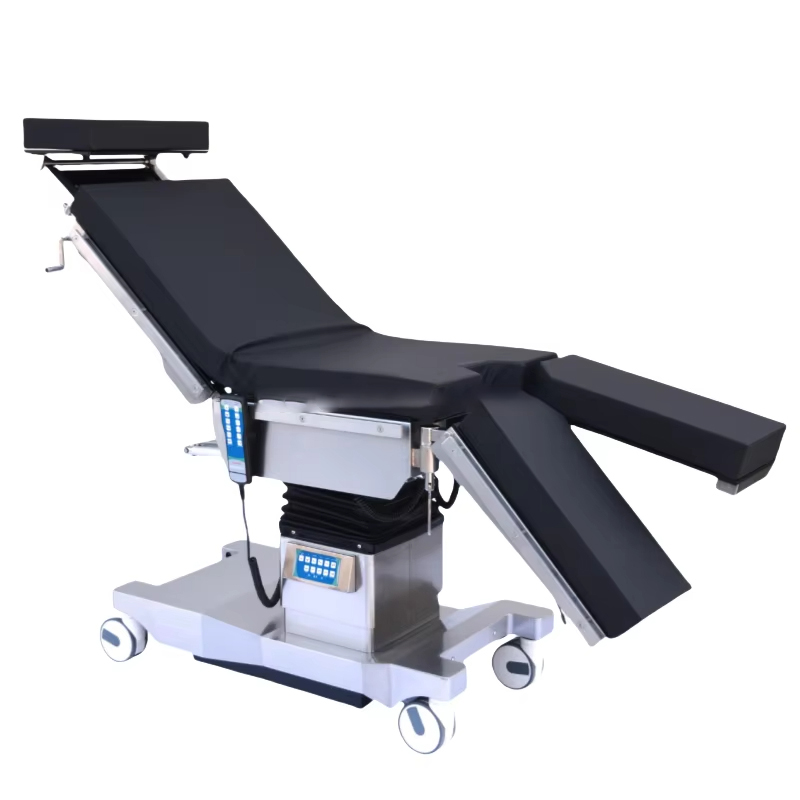

YGD03-1 Electric operation table

Ⅰ.Performance description:

The product is suitable for surgery, gynecology, urology, otolaryngology, and orthopedics.

The table frame, side rail, base cover and column cover are all made of SUS304 stainless steel.

The table is divided into four sections: head ,back (including waist bridge), hip and leg section; The tabletop is made of high-strength composite material with X-ray transmission; It can be cooperated with a C-arm to take photos.

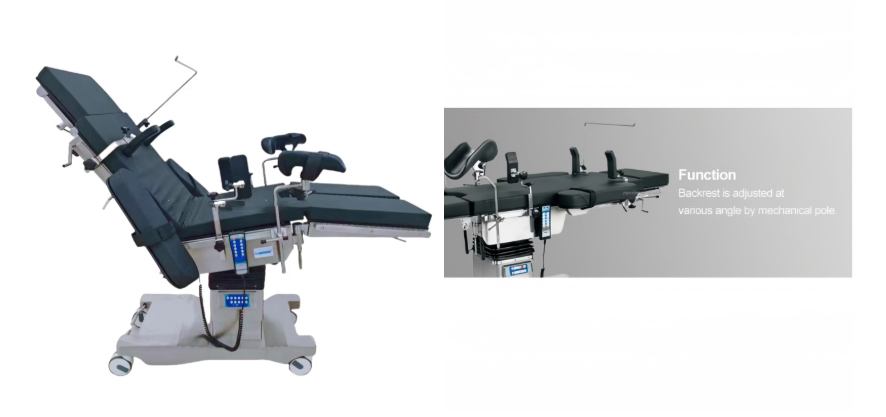

The table lifting, backward and forward tilt, left and right tilt, folding up and down of the back plate, and translation are all controlled by the electric push rod.

The product has double control systems : hand-held l  controller and column fixed controller, when one fails, the  other can be enabled .

The head board adopts double-joint structure, and it can be adjusted to make the head board and table surface horizontally parallel.

The leg plate is folded up and down with gas spring control.

The handle shakes make the built-in waist bridge lift up and down.

 German TENTE central control silent casters.

The cengral brake is with three switches: directional, universal, and braking

The mattress is made of high-grade memory sponge pad, with a thickness of ≥6cm, which is antibacterial, easy to clean and corrosion-resistant; It has antistatic and decompressive effects, it can also prevent the patient from having bedsores during long time surgery..

When the battery is fully charged, it can be operated continuously and uninterruptedly in the state of no AC power supply, and the adjustment time of the surgical position is not less than 80 minutes

The static load of the whole machine is 297kg。



Contact Us
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
  • YGD03-1 Electric operation table
PREV：No previous article
NEXT：YGD07 Neurosurgery electric Operation Table

Product Description

This product is suitable for surgery, gynecology, urology, otolaryngology, orthopedics.
The table frame, side rails, bottom cover and column cover are all made of SUS304 stainless steel.
The table is divided into four parts: head, back (including waist bridge), hip and leg parts; the desktop is made of high-strength composite material with X-ray transmittance; it can be used with a C-arm to take pictures.
The lifting and lowering of the workbench, front and back tilting, left and right tilting, up and down folding of the backboard, and translation are all controlled by electric push rods.
The product has a dual control system: a handheld L controller and a column fixed controller. When one fails, the other can be enabled.
The headboard adopts a double joint structure, which can be adjusted to make the headboard and the table horizontally parallel.
The leg board is controlled to fold up and down by a gas spring.
The handle shakes to make the built-in waist bridge rise and fall.
German tent central control silent casters.

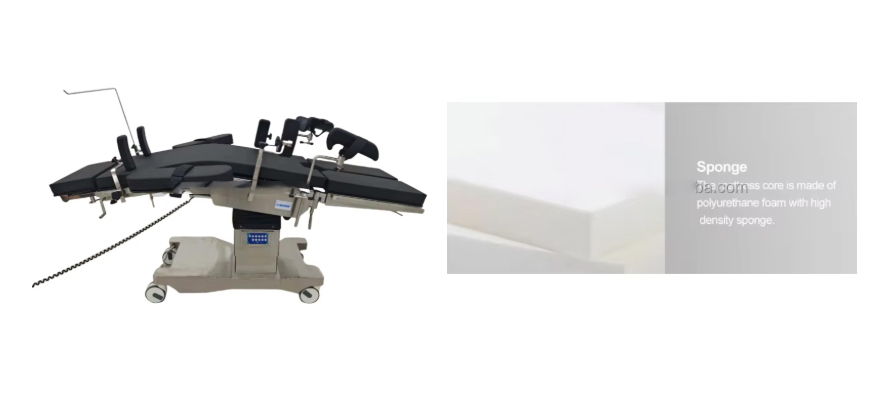

The mattress uses high-grade memory foam pad, with a thickness of ≥ 6 cm, which is antibacterial, easy to clean and corrosion-resistant; it has antistatic and decompression effects, and it can also prevent patients from having bedsores during long-term surgery.
When the battery is fully charged, it can operate continuously without AC power, and the adjustment time of the surgical position is not less than 80 minutes
The static load of the whole machine is 297 kg.

Kidney Bridge
Built-in kidney bridge, more
convenient and nice appearance.
Wheel
6" castors import from germany.
Hydraulic System
Brand hydraulic system (German
Hoerbiger)make table with low noise,high safety and reliability.
Shoulder Support with Cushion
Arm Support with Cushion
Braking System
Pedal Brake, Easy To Move And Lock.
Powder Supply
Internal battery maintaining power
supply for 50-80 operations and with
low battery warning function.
Leg Plate
Leg Plate With Imported Gas Spring
For Easy Control.
Body Support with Cushion

Table length

2100mm

Table width

550mm

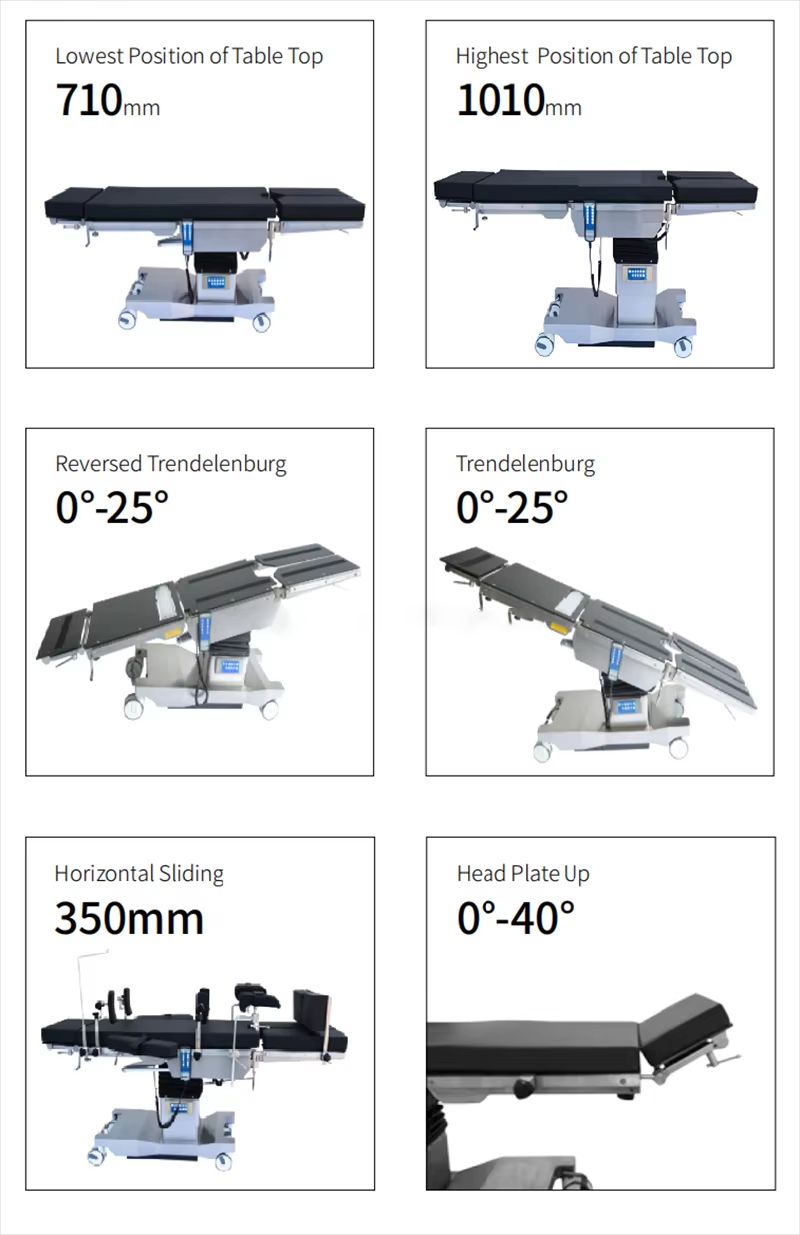

Table lifting:

700-1000mm

Headboard upwards/downwards

≥45°/ ≥90°

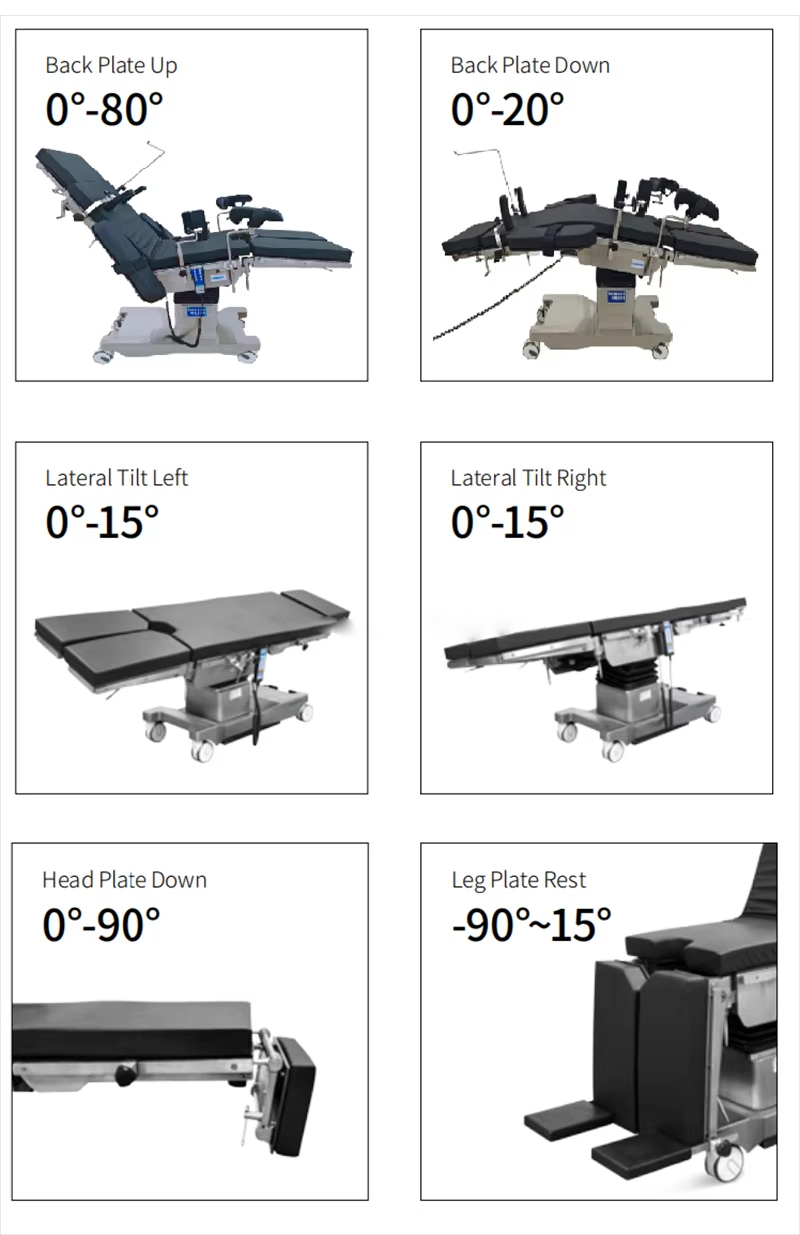

Backboard upwards/downwards

≥80°/ ≥17°

Leg board upwards

downwards/ outreached

≥ 15°/ ≥  90°

≥ 180°

Forward tilt/ Backward tilt

≥25°

Left and right tilt

≥15°

Waist bridge lifting

≥120mm

Translation distance

350mm

One key Flex / Reflex

100°/197°

One key reset

Long press for 3 seconds

Anesthesia protective screen

1 piece

Shoulder support

1 set

Hand rest

1 set

Body support

1 set

Leg support

1 set

Mattress

1 set

Hand held operator

1 set
