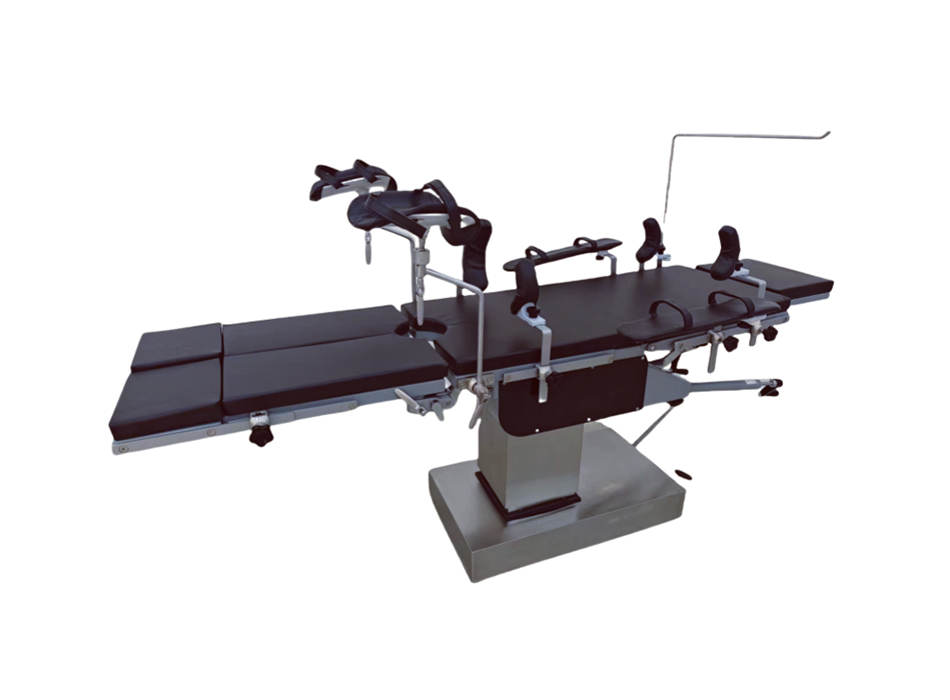

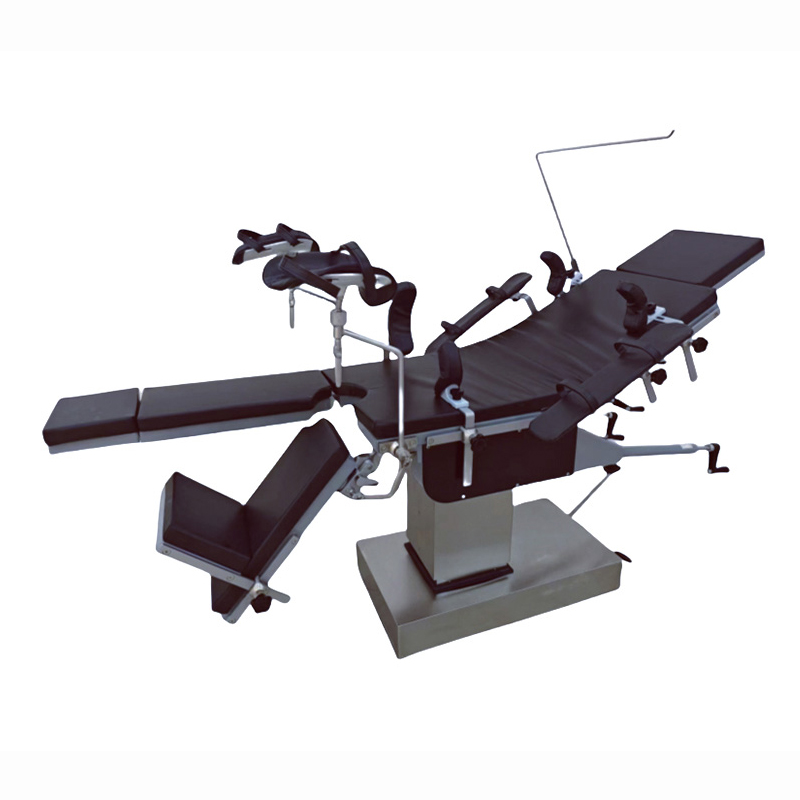

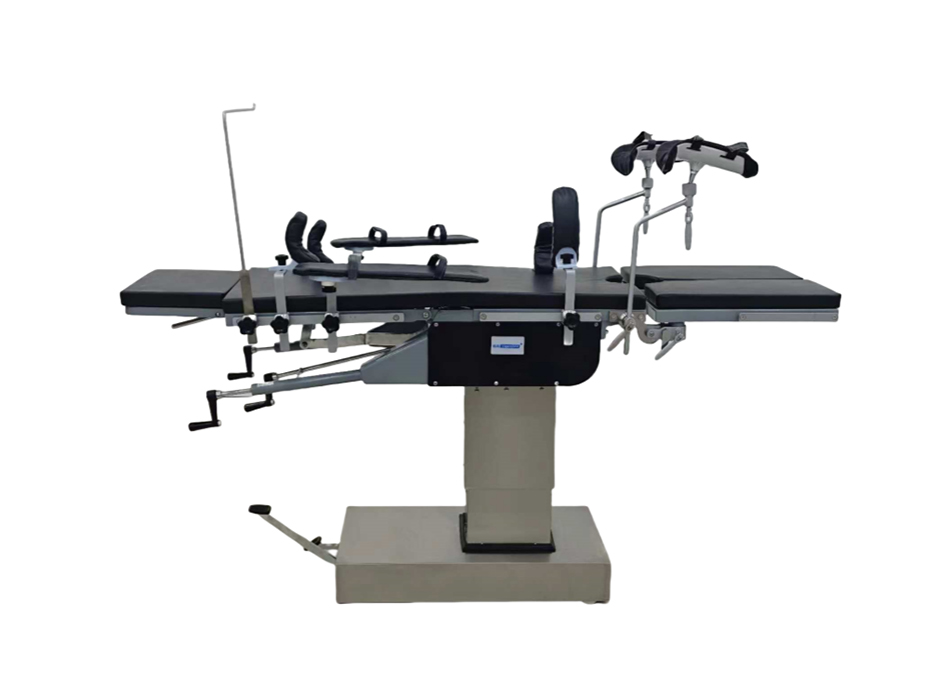

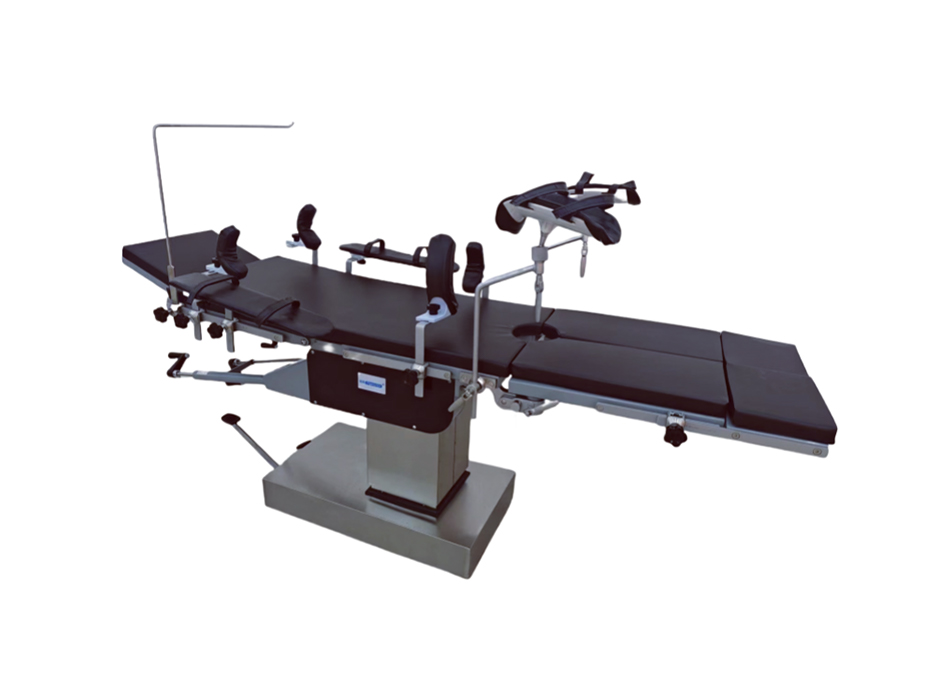

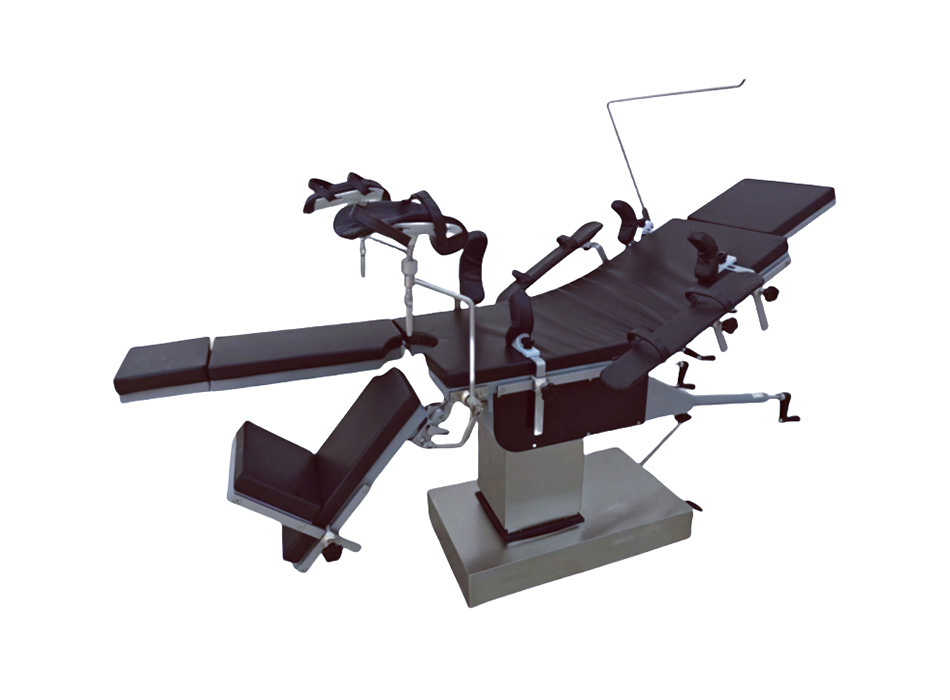

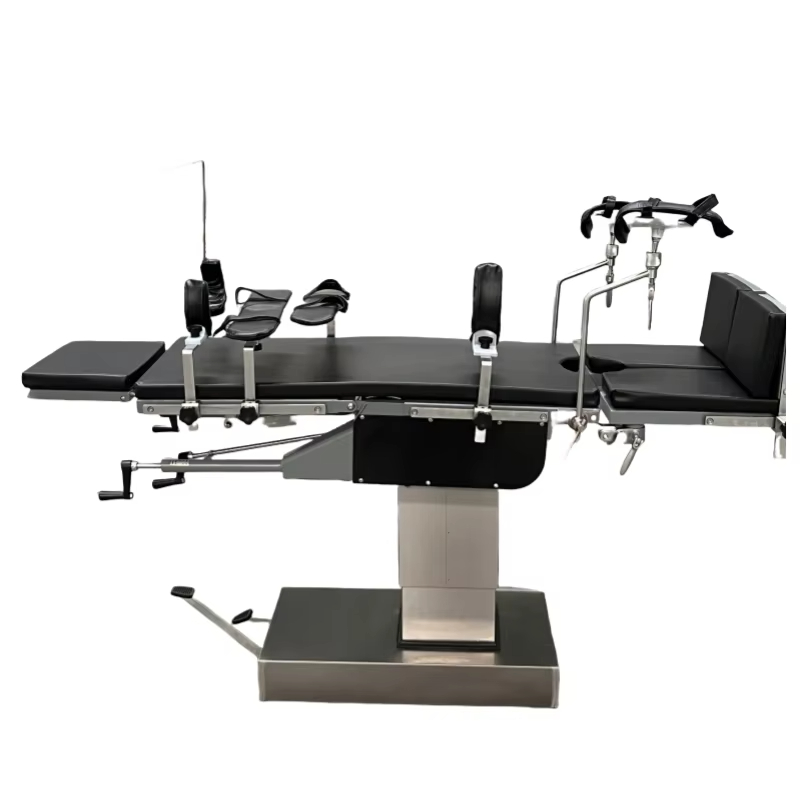

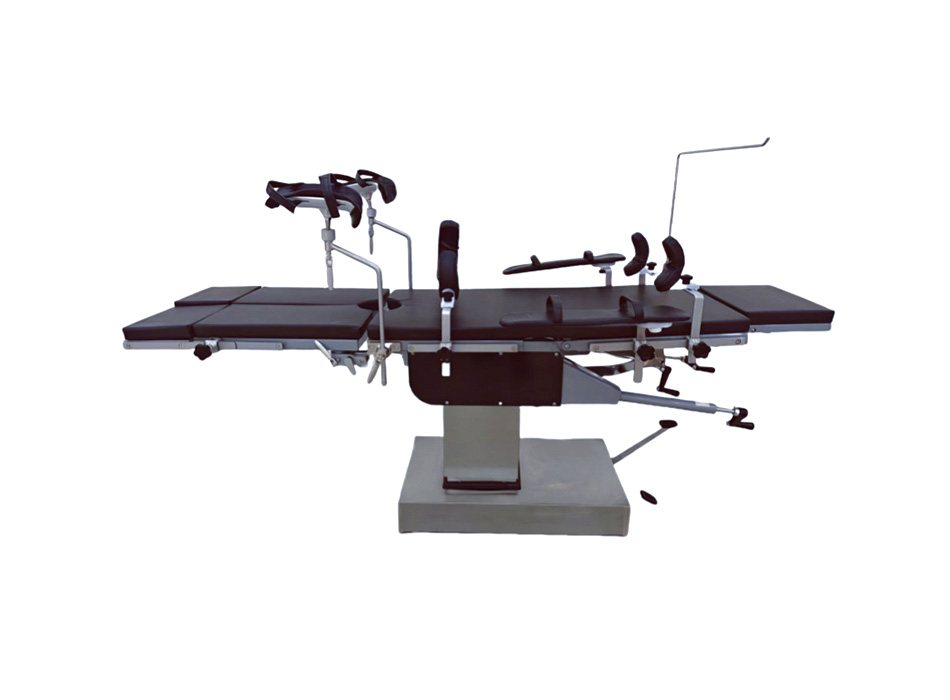

YGS3008B Multifunction hydraulic operating table

YGS3008B Multifunction hydraulic operating table is a high-performance medical device suitable for a variety of surgical operations. It is widely used in the head and neck, chest and abdomen, perineum, limbs, as well as obstetrics, gynecology, ophthalmology, otolaryngology, and orthopedics. The operating table consists of a headboard, backboard, waistboard, hipboard, and split legboard. Each component can be precisely adjusted. The up and down folding, front and back tilting, left and right tilting of the backboard and leg board can be controlled by hand-cranked gears, worm gears, and rack systems to ensure the stability and accuracy of the operation. The hydraulic lifting system is driven by a foot-operated hydraulic pump, which is easy to operate and noiseless, and can meet the needs of frequent height adjustment. The operating table adopts a spray-coated carbon steel tabletop, which is corrosion-resistant, anti-oxidizing, and easy to clean. The base and column shells are made of stainless steel, which is durable and stable.

Contact Us
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
  • YGS3008B Multifunction hydraulic operating table
PREV：YGS3001B Ophthalmic hydraulic operating table
NEXT：YGS3008 Hydraulic operating table

Product Description

YGS3008B hydraulic operating table
1. The product is suitable for various surgeries, such as head and neck, chest and abdomen, perineum and limbs, as well as obstetrics and gynecology, ophthalmology, otolaryngology, orthopedics, etc.
2. The operating table consists of a head board, a back board, a waist board, and a split leg board.

Manual operating table
4. The up and down folding, front and back tilting, left and right tilting of the back and leg boards are all achieved through the handshakes, worm gears and racks on both sides of the table. The head board is screw-locked; the waist board is hand-cranked; the up and down folding of the leg board is controlled by ratchet; the waist board is hand-cranked.

3. The lifting of the workbench is achieved by repeatedly stepping on the foot pedal to drive the hydraulic oil pump.
5. The tabletop is carbon steel sprayed;
6. The base and column guards are made of stainless steel.

Table length

 1950mm

Table width

 520mm

Table lifting

 720-970mm

Headboard upwards/downwards

 ≥45°/ ≥90°

Backboard upwards/downwards

 ≥80°/ ≥10°

Leg board Downwards / outreached

 ≥ 90°

Forward tilt/ Backward tilt

 ≥30°

Left and right tilt

 ≥20°

Waist bridge lifting

 ≥120mm
Item Quantity
Anesthesia protective screen 1 piece
Shoulder support 1 set
Armrest 1 set
Body support 1 set
Leg support 1 set
Foot board 1 set
Mattress 1 set
Hand-held operator 1 set
