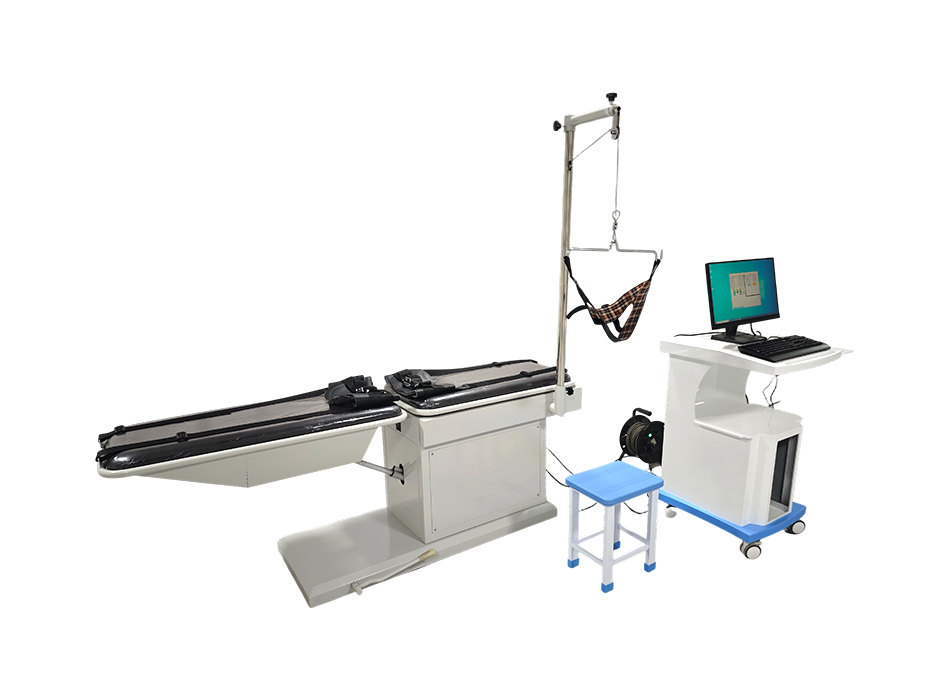

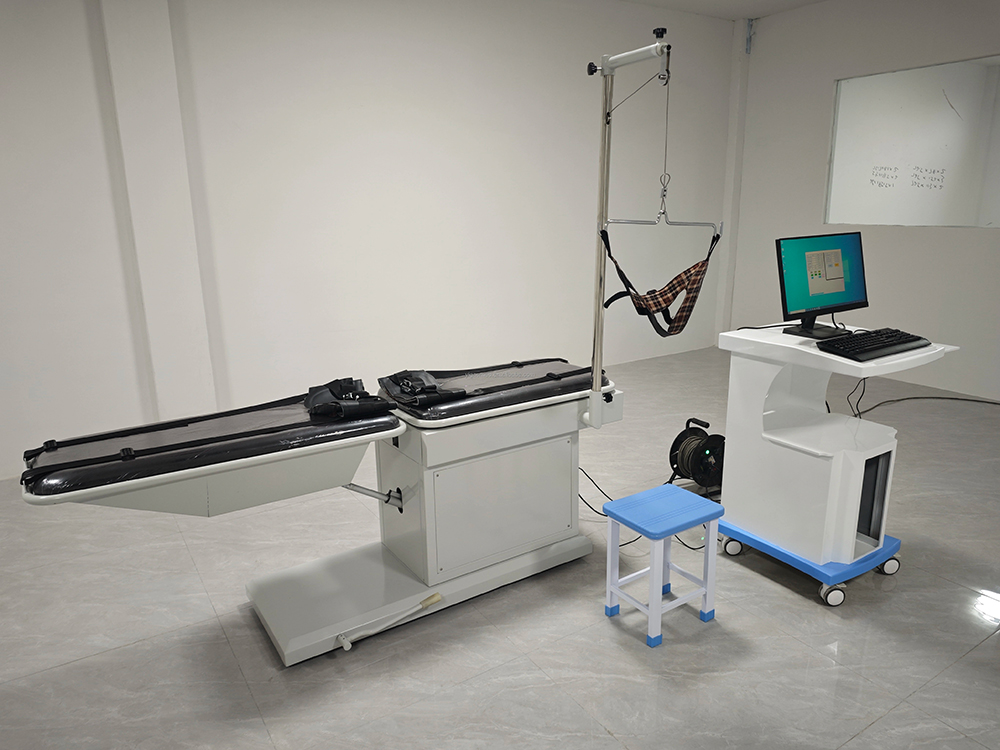

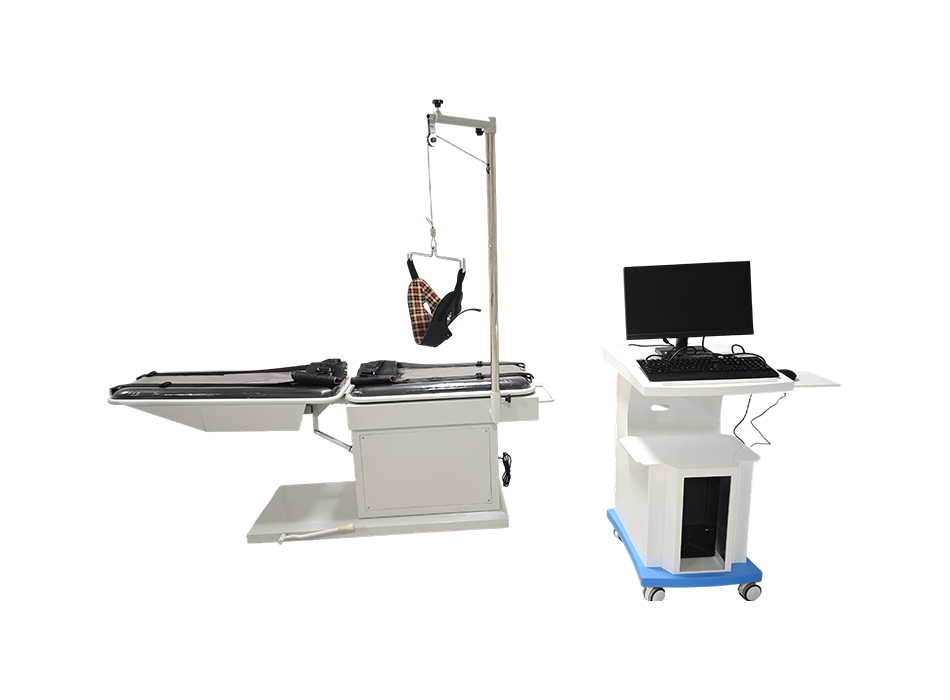

YGT04 Orthopedic electric Traction bed
This product is a three-dimensional cervical and lumbar spine treatment traction bed, with all data controlled by a microcontroller, LCD display, and linear motor as the driving force, fully realizing intelligent treatment. Rotation and angular angles are measured using rotation encoding technology, making angle measurement more accurate. The correction treatment effect is particularly significant for the lumbar posterior joint. In clinical practice, horizontal traction, angular traction, and rotational traction can be performed separately or in combination to overcome the inadequacy of a single action and achieve three-dimensional traction. Lumbar traction and cervical traction can be performed simultaneously. To ensure patient safety, when the neck tension is greater than 200N, the confirmation button must be pressed before increasing the neck tension. When the patient feels unwell, they can press the emergency retreat button and the traction mechanism will immediately retract.
Product Description
Traction bed
Scope of application: This product is suitable for the treatment of cervical and lumbar spondylosis. It can perform continuous and intermittent traction modes, controlled by computer software, and input signals through touch keys. It has monitoring program traction process protection to ensure patient safety. The lumbar and cervical vertebrae can be pulled at the same time.

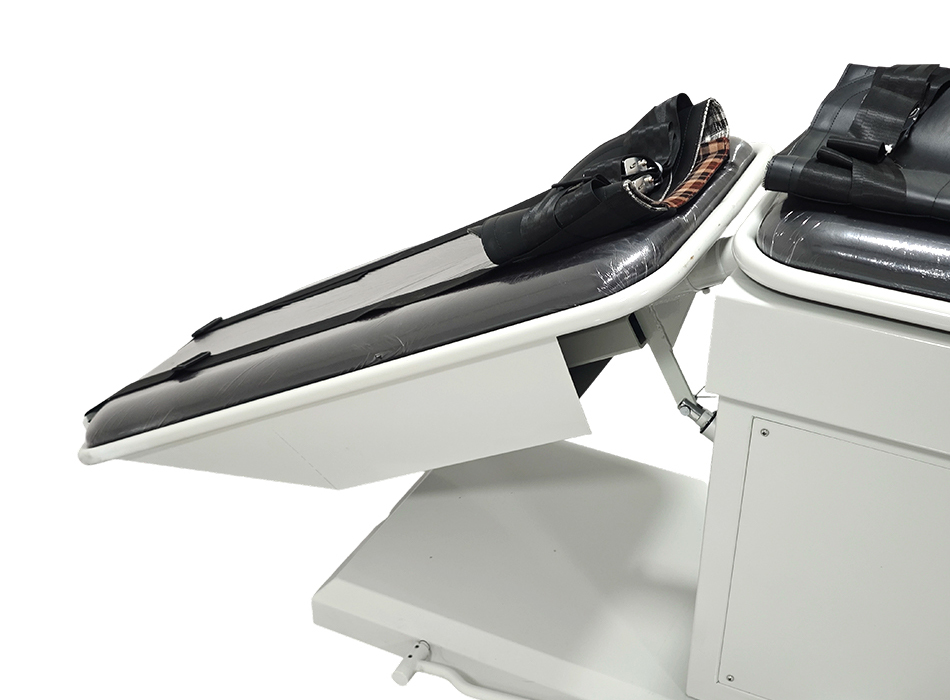

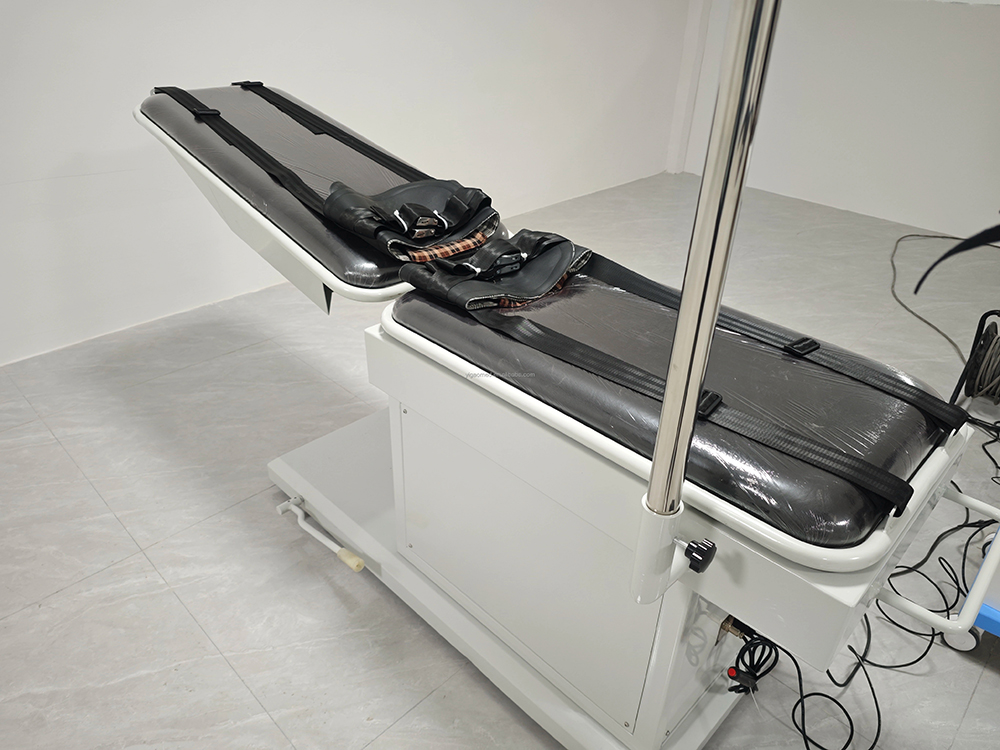

Lumbar traction bed
1. Traction function: Lumbar traction, maximum traction stroke 200 mm, maximum traction force 970N;
2. Cervical traction function: maximum traction stroke is 250 mm, maximum traction force is 294N during automatic traction, and the traction force depends on the patient's feeling during manual traction.
The system has eight traction modes.

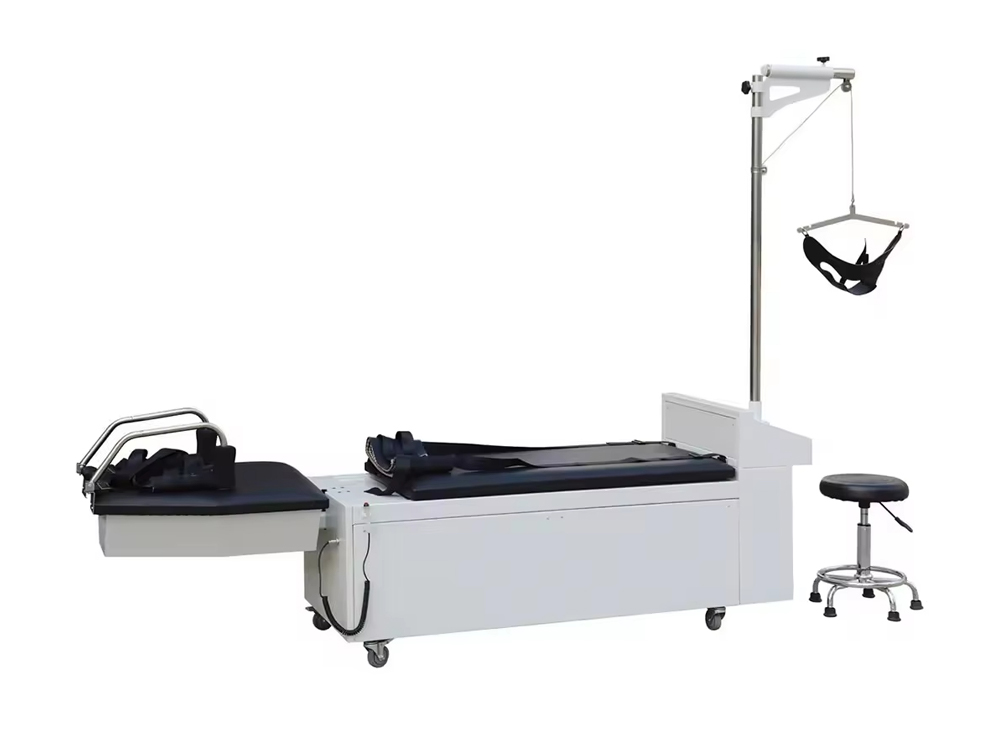

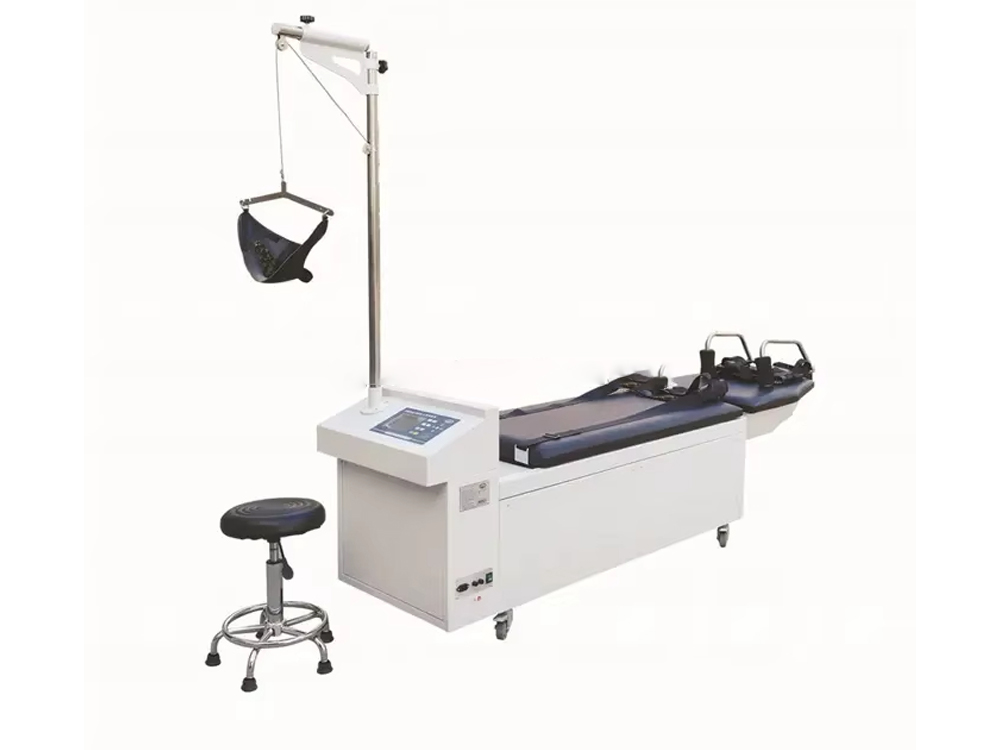

Cervical traction bed
4. The system is equipped with dual emergency stop operation, that is, both the doctor and the patient can perform emergency stop operation during treatment. During treatment, the patient will hold the emergency stop button in his hand to make him feel uncomfortable during traction. Pressing this button will make the system enter the emergency stop reset action to avoid accidents.
|
Bed Size |
2450mm × 600mm × 750mm |
|
Lumbar traction stroke |
200mm |
|
Cervical traction stroke |
250mm |
|
Total traction time |
99 minutes |
|
Traction time |
9 minutes |
|
Interval time |
90s |
|
Lumbar traction force |
990N |
|
Cervical traction force |
300N |
|
Angular angle |
-30 °/+10 ° |
|
Swing angle |
-25 °/+25 ° |
|
Traction mode |
8 types |
| Item | Quantity |
| Cervical Traction Frame | 1 piece |
| Cervical Brace | 1 piece |
| Straps | 1 set |
| Emergency Return Button | 1 piece |
